Gomaco Commander III
Price excl. GST
POA
Print
INFO
Product Group
Concrete pavers
Brand / model
Gomaco Commander III
Manufacture date (yr)
2024
Condition
New/unused
Location
Phoenix, Arizona
Country
United States
Mascus ID
7028214A
ITEM DETAILS
Internal stock no.
NC001082

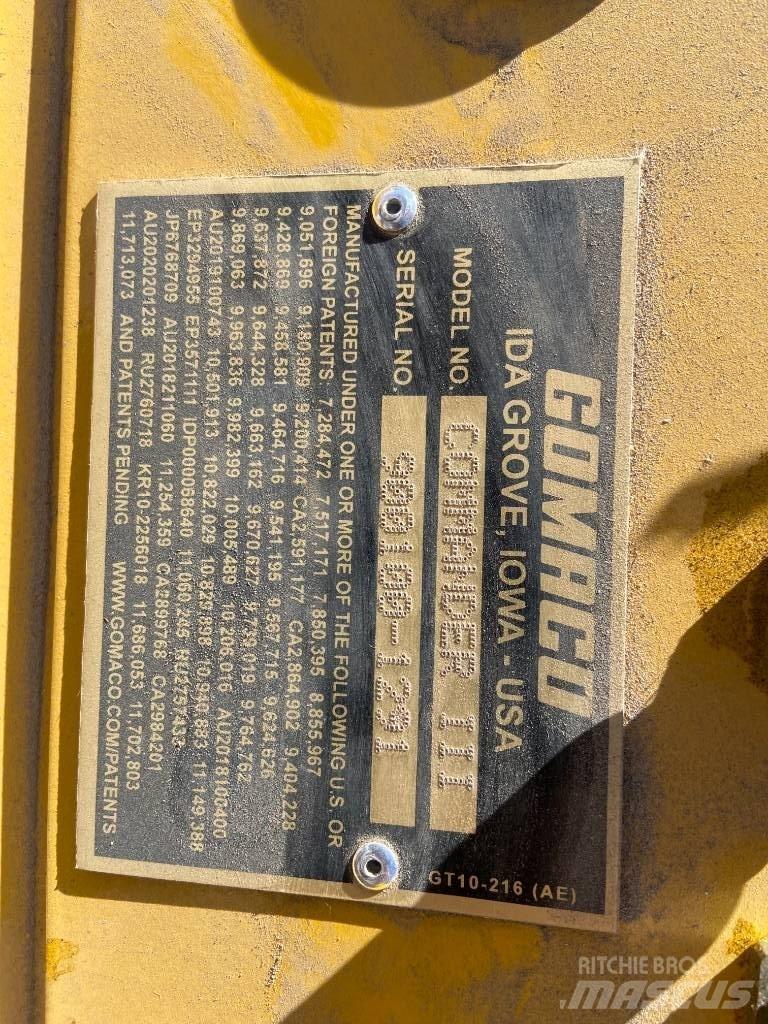

Manufacturing / Serial number
9001001291
Engine
C7.1
Engine manufacturer
Caterpillar
Additional Info

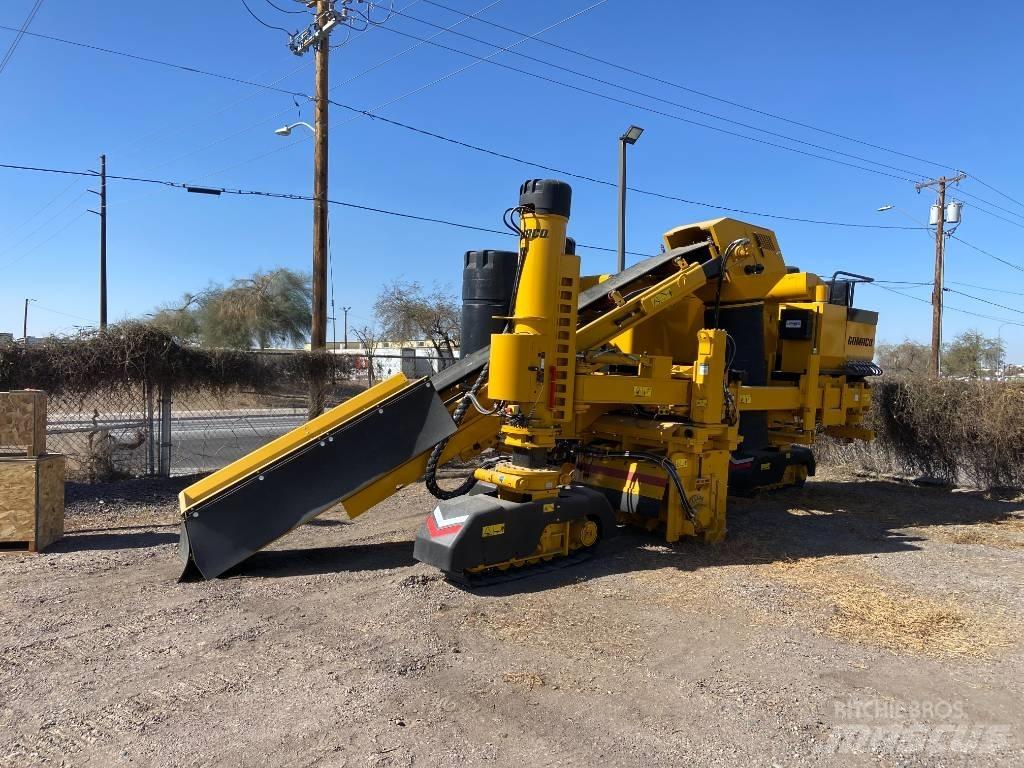

2024 Gomaco Commander III Xtreme
Caterpillar C7.1, 173 HP, Tier 4
Fuel Reservoir 88 Gallon
Hydraulic Oil Reservoir 162 Gallon
Oil Cooler
42 inch Wide Sectional Trimmer Head
-one 24. inch drive section with internal hydraulic radial piston drive motor
-one 18 inch extension
-18 inch hydraulic vertical adjustment and 6 inch manual vertical adjustment
-36 inch hydraulic sideshift adjustment
Drawbar and Hold-Down Assembly
-18 inch pressure-compensated hydraulic vertical adjustment and 6 inch manual vertical adjustment
-36 inch maximum hydraulic sideshift
Four Hydraulic Vibrators
Eight Hydraulic Vibrator Circuits with Individual Variable Controls
Hydraulic Pump System
G+ Control System
Automatic On/Off Control for Vibrators Synchronized with Machine Movement
Xtreme Package
Three Crawler Tracks-Series One
Hydraulically Pivoting Left Front Track Mount
Hydraulically Extendable Right-Side Track and Rear Track Mounts
Piston-Style Leg Assemblies with 42 inch Stroke Lift Cylinders
High Pressure Water System
-110 gallon tank, trigger gun control and adjustable pressure unloader for 0 to 2000 PSI

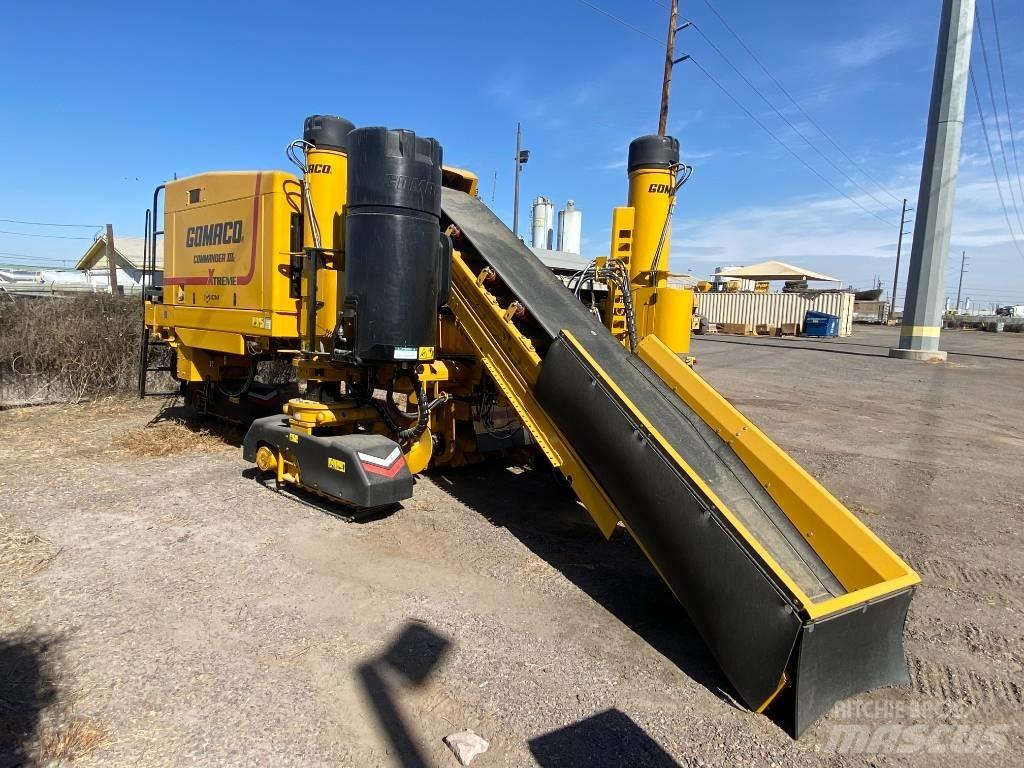

Concrete Charger Conveyor and Mount
-hydraulically driven
-17 foot 1 inch between pulley centers
-24 inch wide Vulcanized belt
-hydraulic sliding conveyor mount with lateral swing and hydraulic adjustment for charging height
Modular Electronic Control Panel
Pivoting Operators Station
Isolated Operators Platform to Eliminate Vibration
Gomaco Umbrella
Emergency Stop Switches
Located in our Phoenix, AZ yard
