Cummins 6BT5.9-C120
Price excl. GST
Print
INFO
Product Group
Engines
Brand / model
Cummins 6BT5.9-C120
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
4180E5A6
PRICE
Select currency
ITEM DETAILS
Internal stock no.
6BT5.9-C120
Latest Date of Inspection
yes
Power Output
87 kW (118 hp)
Part ID
6BT5.9-C120
Full log books
Yes
Manufacturing / Serial number
6BT5.9-C120
Transport weight
600 kg
Transport dimensions (LxWxH)
1200 x 1000 x 1400 mm
RPM
2200
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FOB, CFR, CIF, EXW
Additional Info

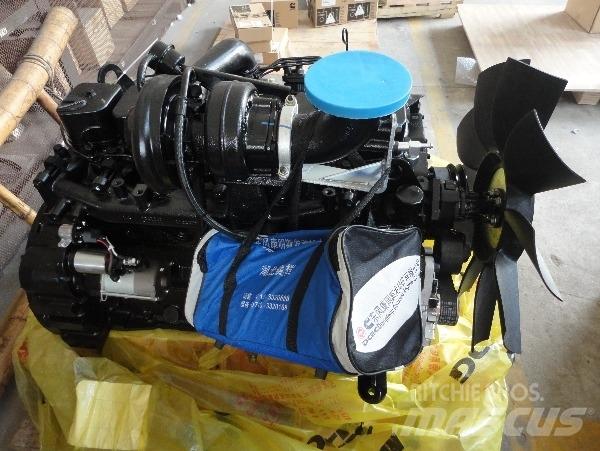

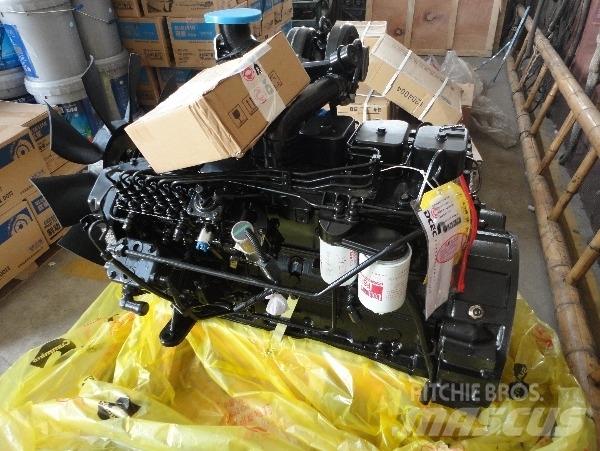

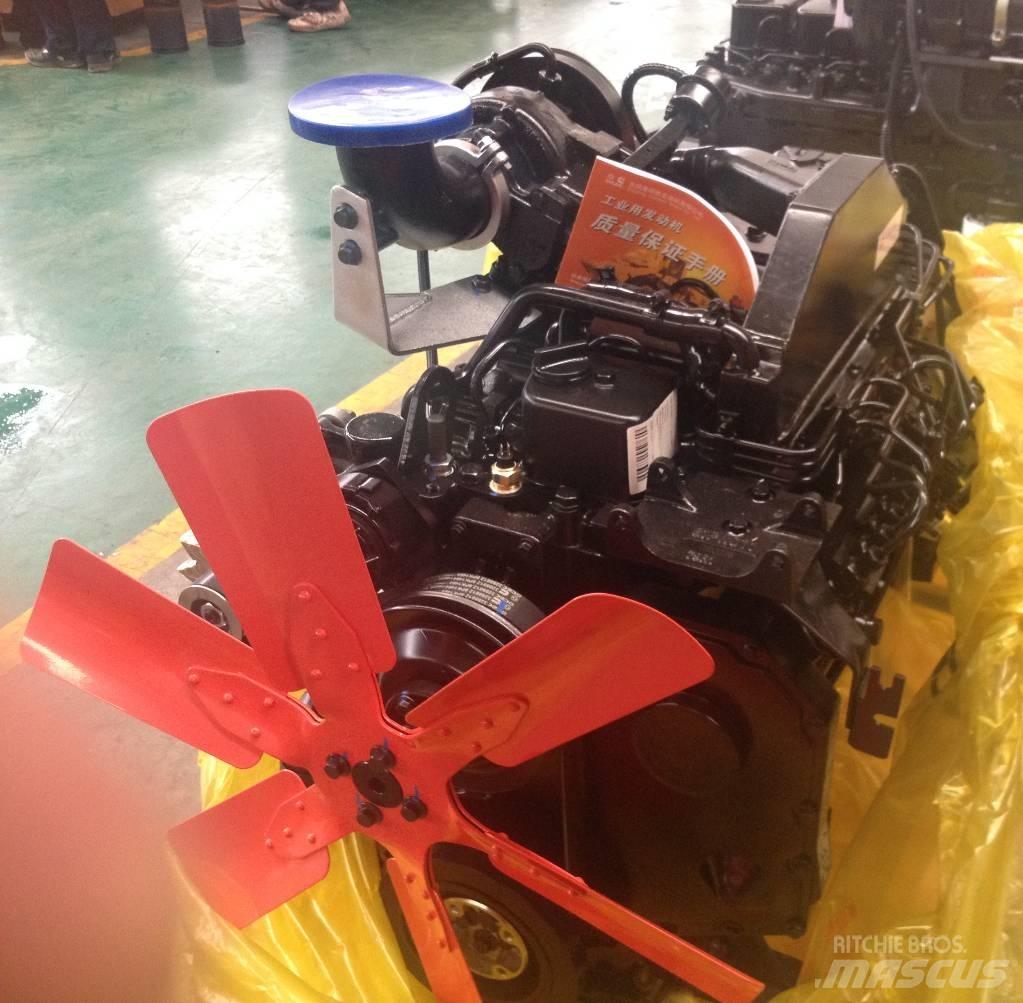

Cummins 6BT5.9-C120 Industrial Diesel Engine
General Information
Engine Model 6BT5.9-C120
Engine Type 6 Cylinders in Line
Displacement 5.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D402056CX02
Net Weight (with flywleel & alternator) 432 Kg
Overall Diemension(L*W*H) 1110mm*750mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.9 L
Performance Data
Rated Power/Speed 87 kW/120HP @ 2200rpm
Max.Torque/Speed 436 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 225g/Kw.h
Idel Speed 750rpm
Max. Continuous Running Altitude 2000 m
