Cummins 6BT5.9-M120
Price excl. VAT
POA
Print
INFO
Product group
Engines
Brand / model
Cummins 6BT5.9-M120
Year of manufacture
2018
Condition
New/unused
Machine location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
A8BCCD4D
DETAILS
Internal stock no.
6BT5.9-M120
Latest inspection
yes
Engine output
90 kW (122 hp)
Part ID
6BT5.9-M120
Full service history
Yes
Manufacturing / Serial number
6BT5.9-M120
Transport weight
700 kg
Transport dimensions (LxWxH)
1400 x 1000 x 1400 mm
RPM
2200
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Other information

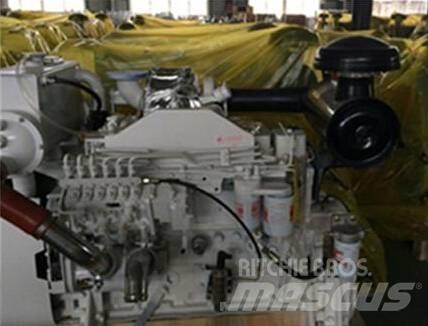

Cummins 6BT5.9-M120 Marine Propulsion Diesel Engine
General Information of Cummins 6BT5.9-M120 Marine Propulsion Diesel Engine
Engine Model 6BT5.9-M120
Engine Type 6 Cylinders in Line
Displacement 5.9 L
Bore*Stroke(mm) 102 * 120
CPL Number 834-02
Net Weight (with flywleel & alternator) 432 Kg
Overall Diemension(L*W*H) 1110mm*750mm*988mm
Technical Specification of Cummins 6BT5.9-M120 Marine Propulsion Diesel Engine
Marine Certification CCS
Aspiration Turbocharged
Fuel System Wuxi Weifu AD/RSV
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.9 L
Performance Data of Cummins 6BT5.9-M120 Marine Propulsion Diesel Engine
Rated Power/Speed 90kW/120HP @ 2200rpm
Max. Power/Speed 100 kW/136HP @ 2270rpm
Fuel Consumption @ Rated Power 225g/Kw.h
Fuel Consumption @ Standby Power 225g/Kw.h
Idel Speed 750±100 rpm
