Cummins 6BTA5.9-C155
Price excl. GST
Print
INFO
Product Group
Engines
Brand / model
Cummins 6BTA5.9-C155
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
00C1998E
PRICE
Select currency
ITEM DETAILS
Internal stock no.
6BTA5.9-C155
Latest Date of Inspection
yes
Power Output
114 kW (155 hp)
Part ID
6BTA5.9-C155
Full log books
Yes
Manufacturing / Serial number
6BTA5.9-C155
Transport weight
500 kg
Transport dimensions (LxWxH)
1200 x 1000 x 1400 mm
RPM
2000
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info

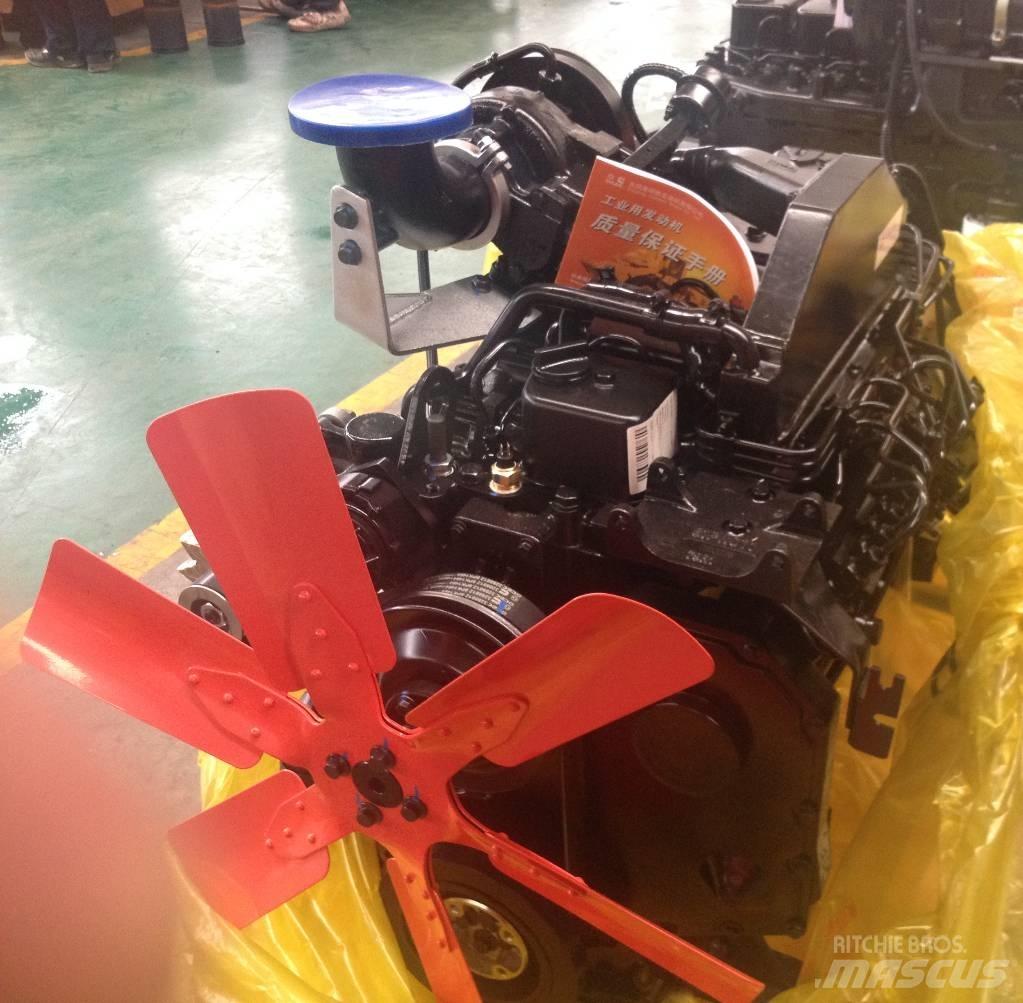

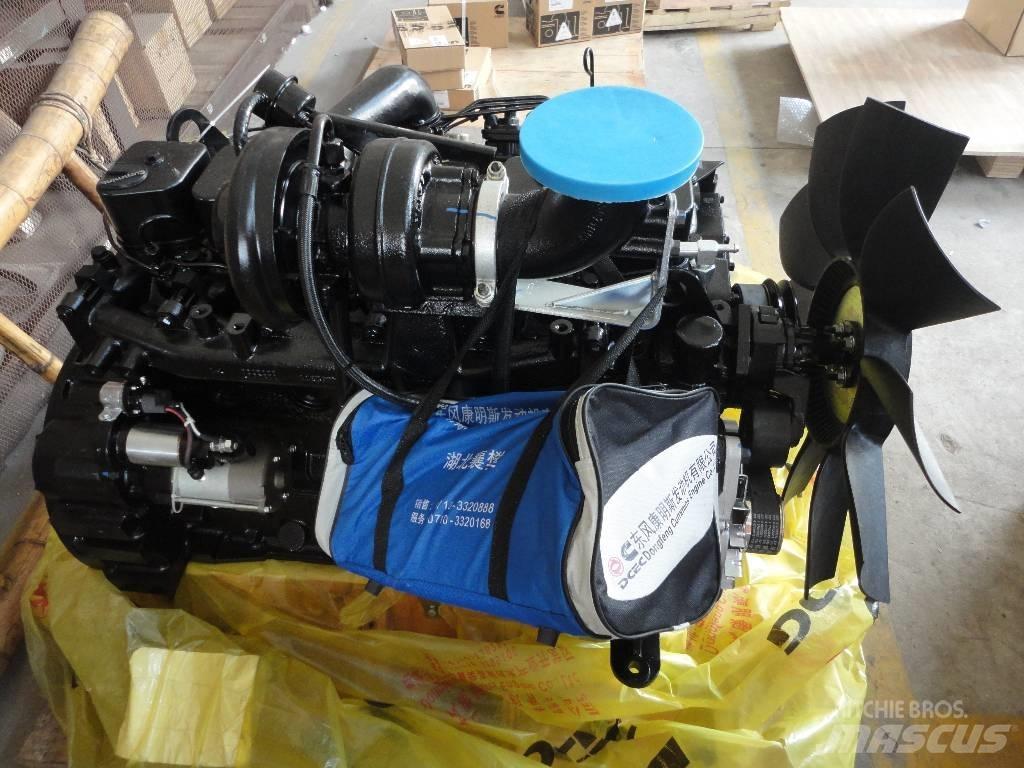

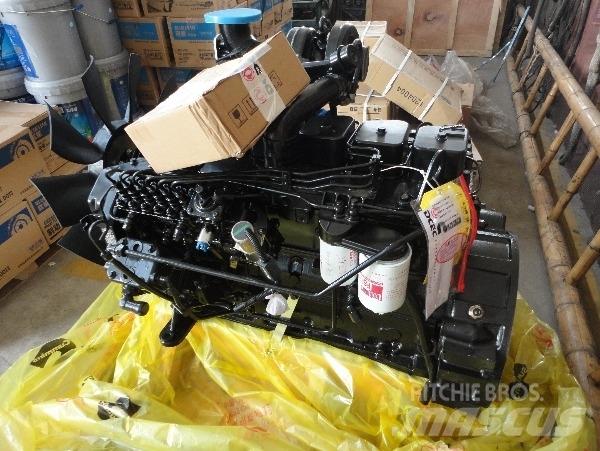

Cummins 6BTA5.9-C155 Industrial Diesel Engine
General Information
Engine Model 6BTA5.9-C155
Engine Type 6 Cylinders in Line
Displacement 5.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D403039CX02
Net Weight (with flywleel & alternator) 443 Kg
Overall Diemension(L*W*H) 1110mm*750mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system 0℃
Engine Cooling Fluid Volume 10.4 L
Performance Data
Rated Power/Speed 114 kW/155HP @ 2000rpm
Max.Torque/Speed 625 N.m @ 1400 rpm
Fuel Consumption @ Rated Power 228g/Kw.h
Idel Speed 750 rpm
Max. Continuous Running Altitude 2000 m
