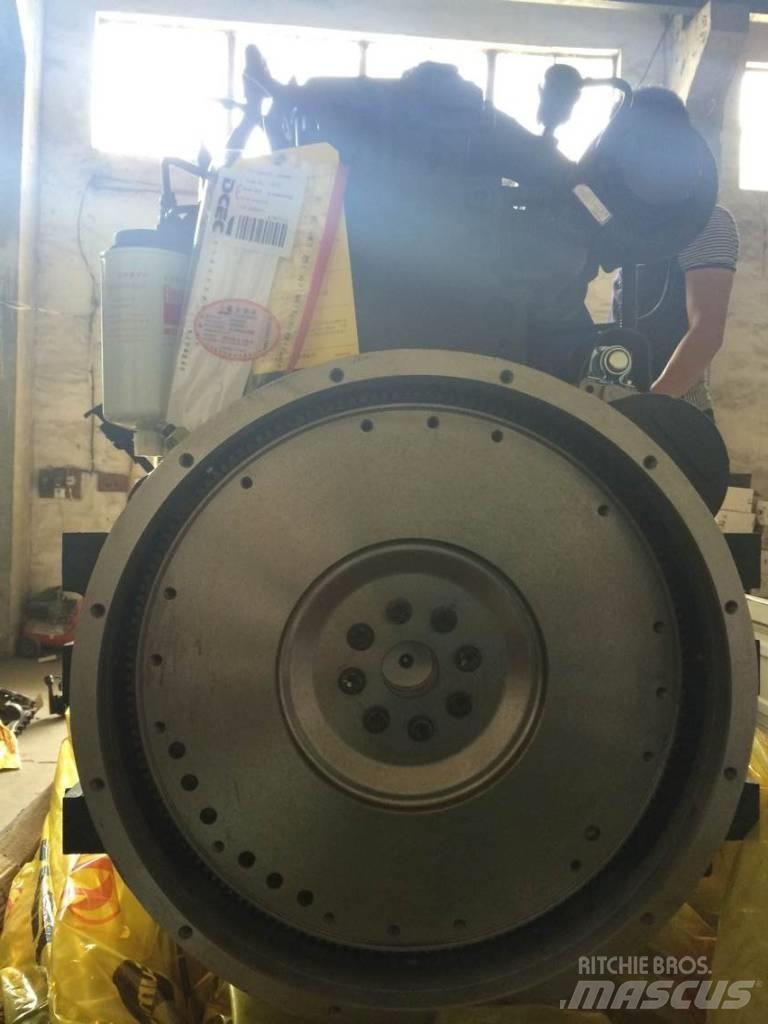

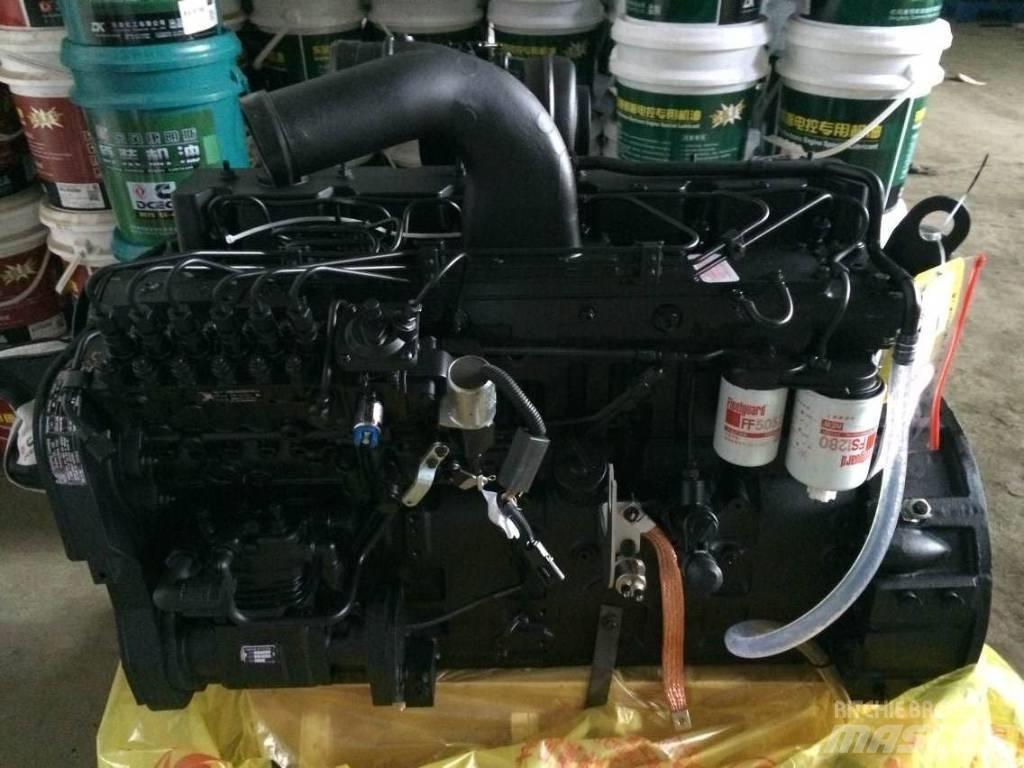

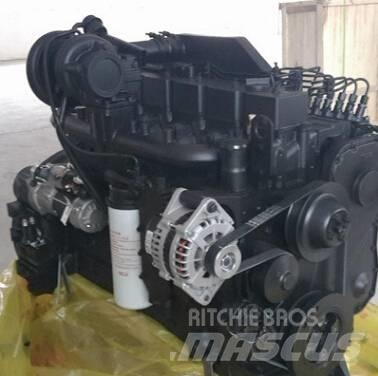

Cummins 6CTA8.3-P220
Price excl. GST
POA
Print
INFO
Product Group
Engines
Brand / model
Cummins 6CTA8.3-P220
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
57FB2AF4
ITEM DETAILS
Internal stock no.
6CTA8.3-P220
Latest Date of Inspection
yes
Power Output
163 kW (222 hp)
Part ID
6CTA8.3-P220
Full log books
Yes
Manufacturing / Serial number
6CTA8.3-P220
Transport weight
800 kg
Transport dimensions (LxWxH)
1400 x 1000 x 1400 mm
RPM
1500
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info
Cummins 6CTA8.3-C220 Industrial Diesel Engine
General Information of Cummins 6CTA8.3-C220 Industrial Diesel Engine
Engine Model 6CTA8.3-C220
Engine Type 6 Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
Engine Configuration Number D413061CX03
Net Weight (with flywleel & alternator) 627 Kg
Overall Diemension(L*W*H) 1560mm*900mm*1400mm
Technical Specification of Cummins 6CTA8.3-C220 Industrial Diesel Engine
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Byc Pump/RSV
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.8 L
Performance Data of Cummins 6CTA8.3-C220 Industrial Diesel Engine
Rated Power/Speed 163kW/220HP @ 1500rpm
Max.Torque/Speed 880N.m @ 1500 rpm
Fuel Consumption @ Rated Power 233g/Kw.h
Idel Speed 900rpm
Max. Continuous Running Altitude 2000 m
