Cummins ISDe285 30
Price excl. GST
POA
Print
INFO
Product Group
Engines
Brand / model
Cummins ISDe285 30
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
Mascus ID
58DE8647
ITEM DETAILS
Internal stock no.
ISDe285 30
Latest Date of Inspection
yes
Power Output
210 kW (286 hp)
Part ID
ISDe285 30
Full log books
Yes
Manufacturing / Serial number
ISDe285 30
Transport weight
700 kg
Transport dimensions (LxWxH)
1400 x 1000 x 1400 mm
RPM
2500
Emission level
Stage IIIB / Tier IV interim
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info

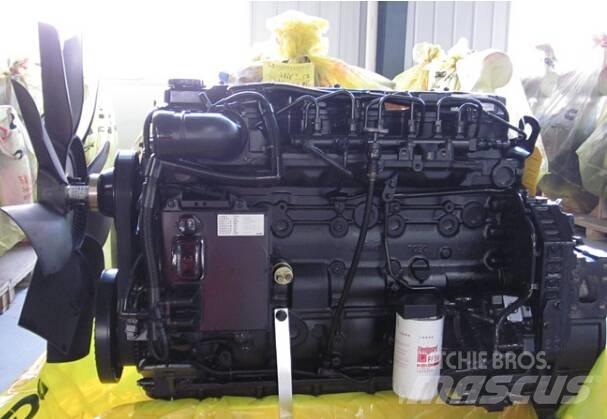

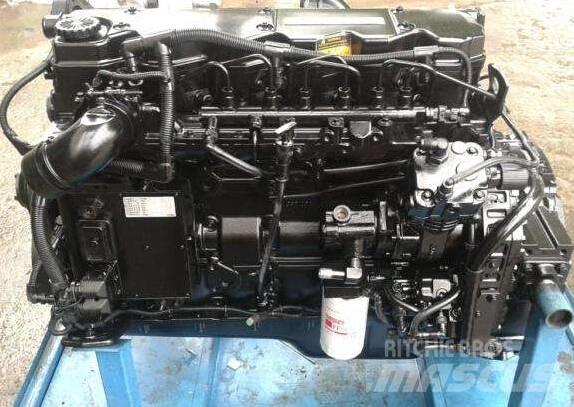

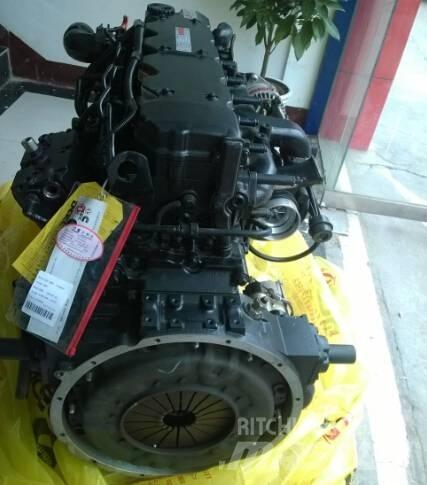

Cummins ISDe285-30 Diesel Engine for Vehicle
General Information of Cummins ISDe285-30 Diesel Engine for Vehicle
Engine Model ISDe270-30
Engine Type 6 Cylinders, in Line
Displacement 6.7 L
Bore*Stroke(mm) 107 * 124
Compression Ratio 17.3 : 1
CPL Number -
Net Weight (with flywleel & alternator) 530 Kg
Overall Diemension(L*W*H) 1060mm*700mm*860mm
Technical Specification of Cummins ISDe285-30 Diesel Engine for Vehicle
Certification Euro III
Aspiration Turbocharged & Inter-cooled
Fuel System Bosch Pump
Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A
Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃
Engine Cooling Fluid Volume 9.4 L
Performance Data of Cummins ISDe285-30 Diesel Engine for Vehicle
Rated Power/Speed 210kW/285HP @ 2500rpm
Max.Torque/Speed 970N.m @ 1400rpm
Fuel Consumption @ Rated Power 50.4 l/hr
Idel Speed 600~800 rpm
Max. Continuous Running Altitude 2000 m
