Cummins KTA38-M1100
Price excl. GST
POA
Print
INFO
Product Group
Engines
Brand / model
Cummins KTA38-M1100
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
0710F16C
ITEM DETAILS
Internal stock no.
KTA38-M1100
Latest Date of Inspection
yes
Power Output
820 kW (1,115 hp)
Part ID
KTA38-M1100
Full log books
Yes
Manufacturing / Serial number
KTA38-M1100
Transport weight
3,800 kg
Transport dimensions (LxWxH)
2000 x 1200 x 2000 mm
RPM
1800
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info

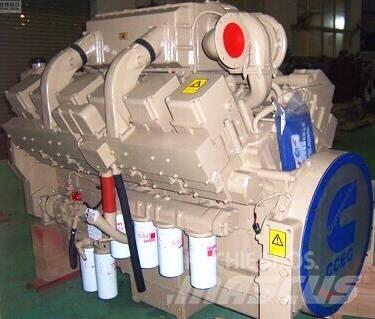

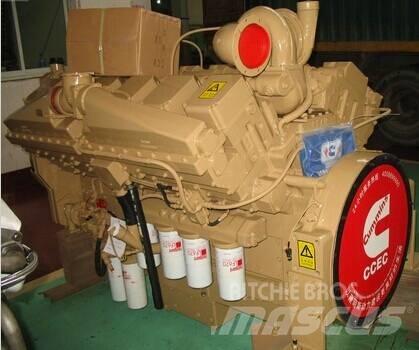

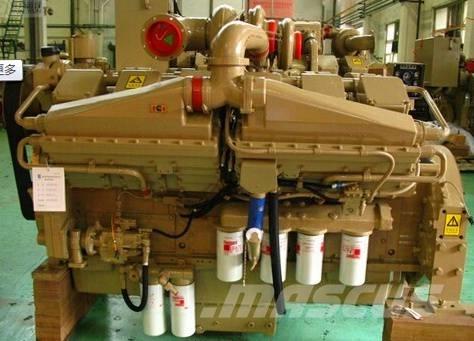

Cummins KTA38-M1100 Marine Propulsion Diesel Engine
General Information of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Engine Model KTA38-M1100
Engine Type 12 Cylinders in Line
Displacement 38 L
Bore*Stroke(mm) 159 * 159
CPL Number 2163
Net Weight (Engine only) 4218 Kg
Overall Diemension(L*W*H) 2003mm*1362mm*1661mm
Technical Specification of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Marine Certification CCS/IMO
Aspiration Turbocharged & Water-Air Inter-Cooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Rated HP Production Tolerance ±2%
Fuel Rail pressure 1047
Performance Data of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Rated Power/Speed 820 kW/1100HP @ 1800rpm
Fuel Consumption @ Rated Power 220g/Kw.h
Fuel Consumption @ Standby Power 216g/Kw.h
Idel Speed 725~775 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
