Cummins NTA855-G2(M)
Price excl. GST
POA
Print
INFO
Product Group
Engines
Brand / model
Cummins NTA855-G2(M)
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
1B5992D6
ITEM DETAILS
Internal stock no.
NTA855-G2(M)
Latest Date of Inspection
yes
Power Output
263 kW (358 hp)
Part ID
NTA855-G2(M)
Full log books
Yes
Manufacturing / Serial number
NTA855-G2(M)
Transport weight
1,400 kg
Transport dimensions (LxWxH)
1700 x 1100 x 1900 mm
RPM
1500
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info

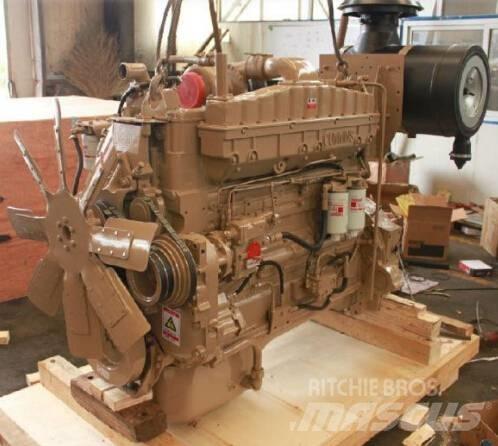

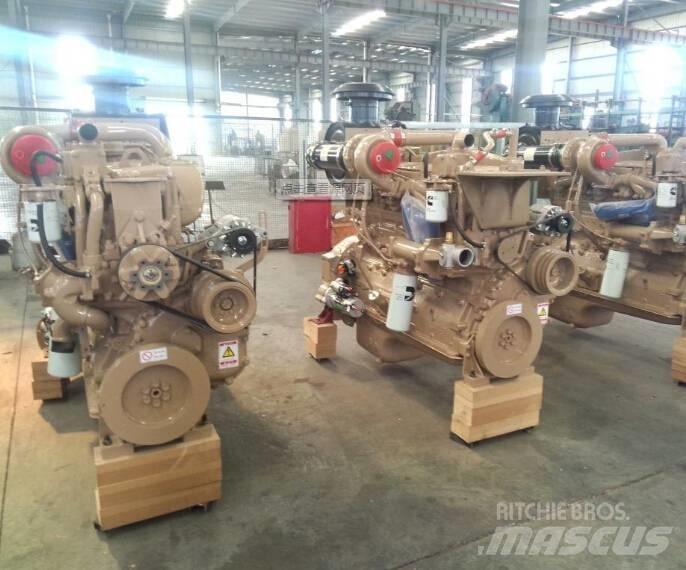

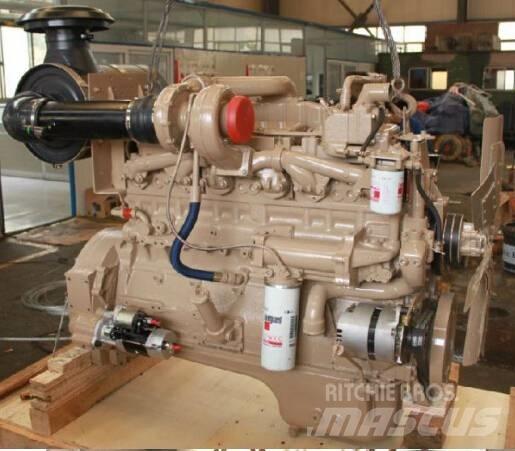

Cummins NTA855-G2(M) Marine G-Drive Diesel Engine
General Information of Cummins NTA855-G2(M) Marine G-Drive Diesel Engine
Engine Model NTA855-G2(M)
Engine Type 6 Cylinders in Line
Displacement 14 L
Bore*Stroke(mm) 140 * 152
CPL Number CQ126
Net Weight (with Heatexchange) 1420 Kg
Overall Diemension(L*W*H) 1460mm*950mm*1300mm
Technical Specification of Cummins NTA855-G2(M) Marine G-Drive Diesel Engine
Marine Certification CCS/IMO
Aspiration Turbocharged & Inter-Cooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Rated HP Production Tolerance ±2%
Fuel Rail Pressure 1605KPa
Performance Data of Cummins NTA855-G2(M) Marine G-Drive Diesel Engine
Rated Power/Speed 263 kW/353HP @ 1500rpm
Standby Power/Speed 321 kW/430HP @ 1500rpm
Fuel Consumption @ Rated Power 210g/Kw.h
Fuel Consumption @ Standby Power 209g/Kw.h
Idel Speed 575~650 rpm
