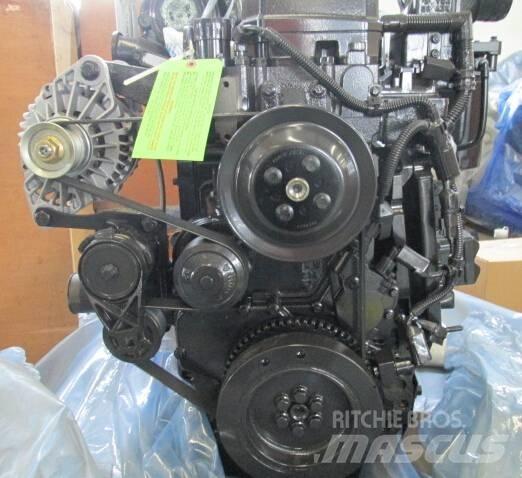

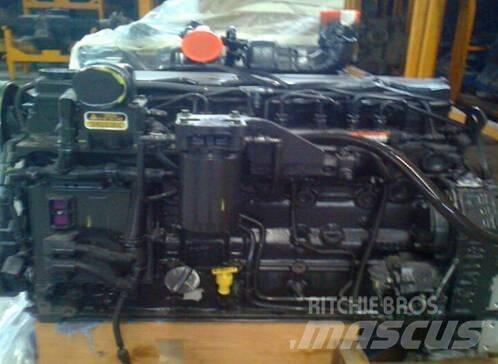

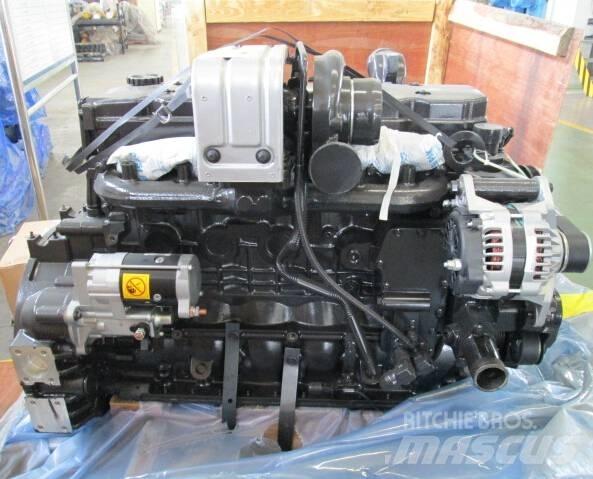

Cummins QSB6.7-C220
Price excl. GST
Print
INFO
Product Group
Engines
Brand / model
Cummins QSB6.7-C220
Manufacture date (yr)
2020
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
7B374EA7
PRICE
Select currency
ITEM DETAILS
Internal stock no.
QSB6.7-C220
Latest Date of Inspection
yes
Power Output
162 kW (220 hp)
Part ID
QSB6.7-C220
Full log books
Yes
Engine manufacturer
Cummins
Manufacturing / Serial number
QSB6.7-C220
Transport weight
570 kg
Transport dimensions (LxWxH)
1250 x 850 x 1100 mm
RPM
2000
Emission level
Stage IIIB / Tier IV interim
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info
Cummins QSB6.7-C220 Diesel Engine for Industrial
General Information of Cummins QSB6.7-C220 Diesel Engine for Industrial
Engine Model QSB6.7-C220
Engine Type 6 Cylinders in Line
Displacement 6.7 L
Bore*Stroke(mm) 107 * 124
Compression Ratio 17.3:1
CPL Number 43862
Net Weight (with flywleel & alternator) 520 Kg
Overall Diemension(L*W*H) 1111mm*716mm*960mm
Technical Specification of Cummins QSB6.7-C220 Diesel Engine for Industrial
Certification Euro III
Aspiration Turbocharged & Intercooled
Fuel System Wuxi weihu Pump
Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A
Lowest Starting Temp.(with/without auxiliary system) -12℃/-24℃
Engine Cooling Fluid Volume 7.0 L
Performance Data of Cummins QSB6.7-C220 Diesel Engine for Industrial
Rated Power/Speed 164kW/220HP / 2000rpm
Max.Torque/Speed 949 N.m/1500 rpm
Fuel Consumption/ Rated Power 29 l/hr
Idel Speed 750 rpm
Max. Continuous Running Altitude 2000 m
