Cummins QSM11-C290
Price excl. GST
Print
INFO
Product Group
Engines
Brand / model
Cummins QSM11-C290
Manufacture date (yr)
2018
Condition
New/unused
Location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
1156FD3B
PRICE
Select currency
ITEM DETAILS
Internal stock no.
QSM11-C290
Latest Date of Inspection
yes
Power Output
216 kW (294 hp)
Part ID
QSM11-C290
Full log books
Yes
Manufacturing / Serial number
QSM11-C290
Transport weight
570 kg
Transport dimensions (LxWxH)
1250 x 850 x 1100 mm
RPM
2100
Emission level
Stage IIIB / Tier IV interim
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Additional Info

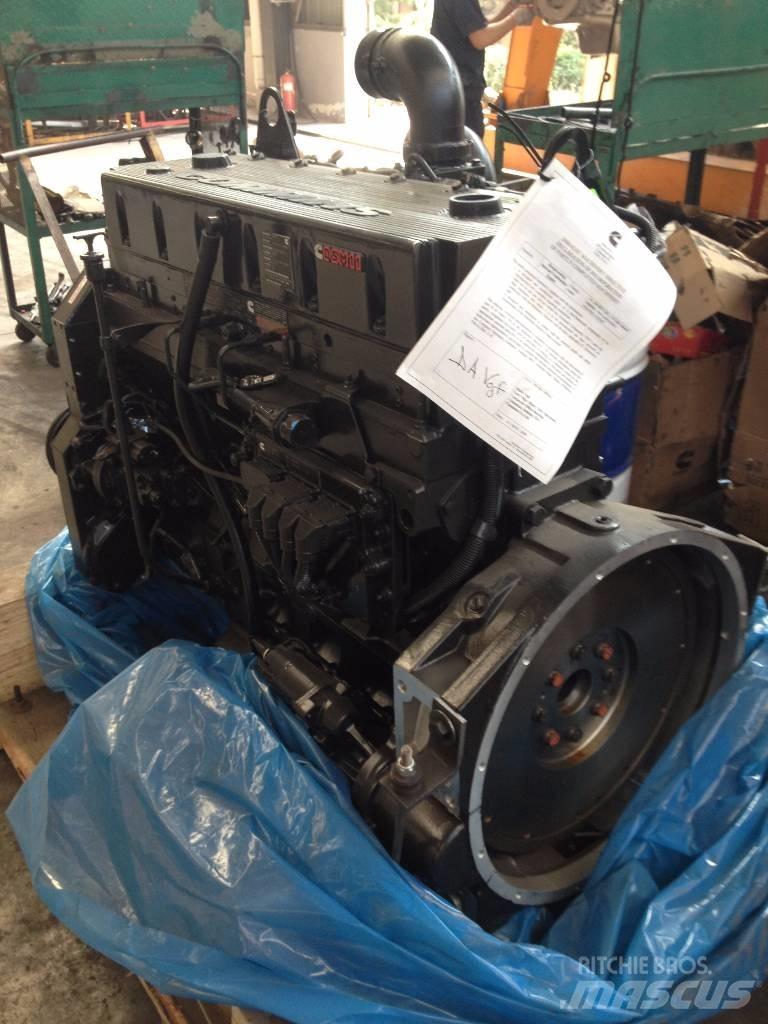

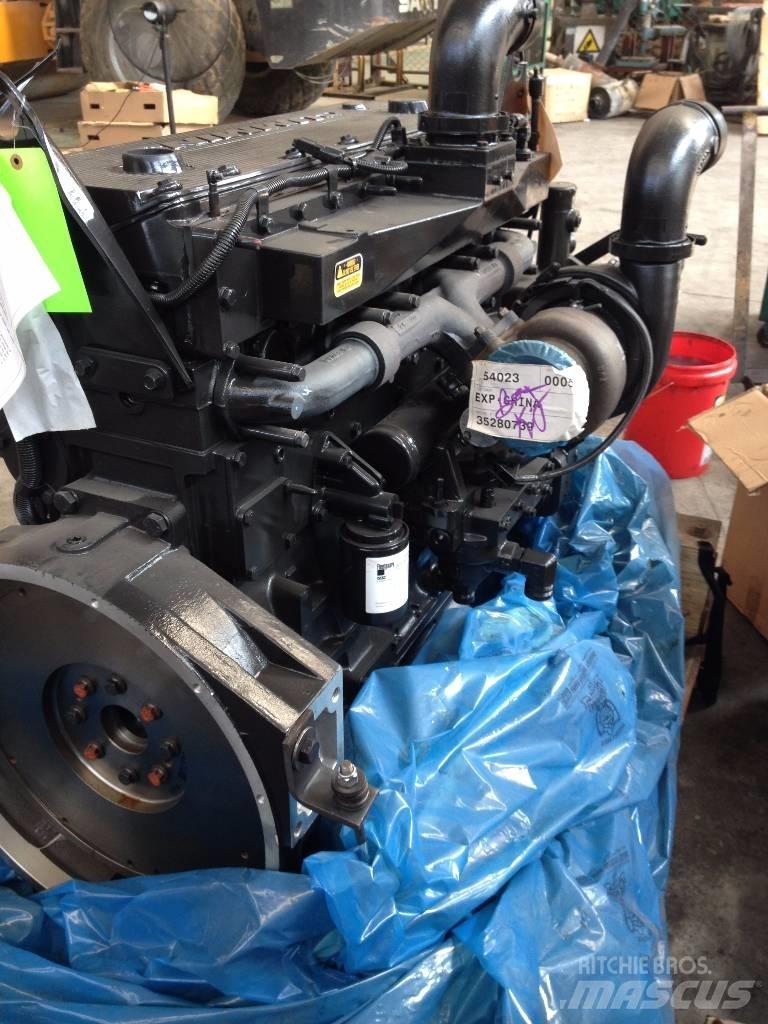

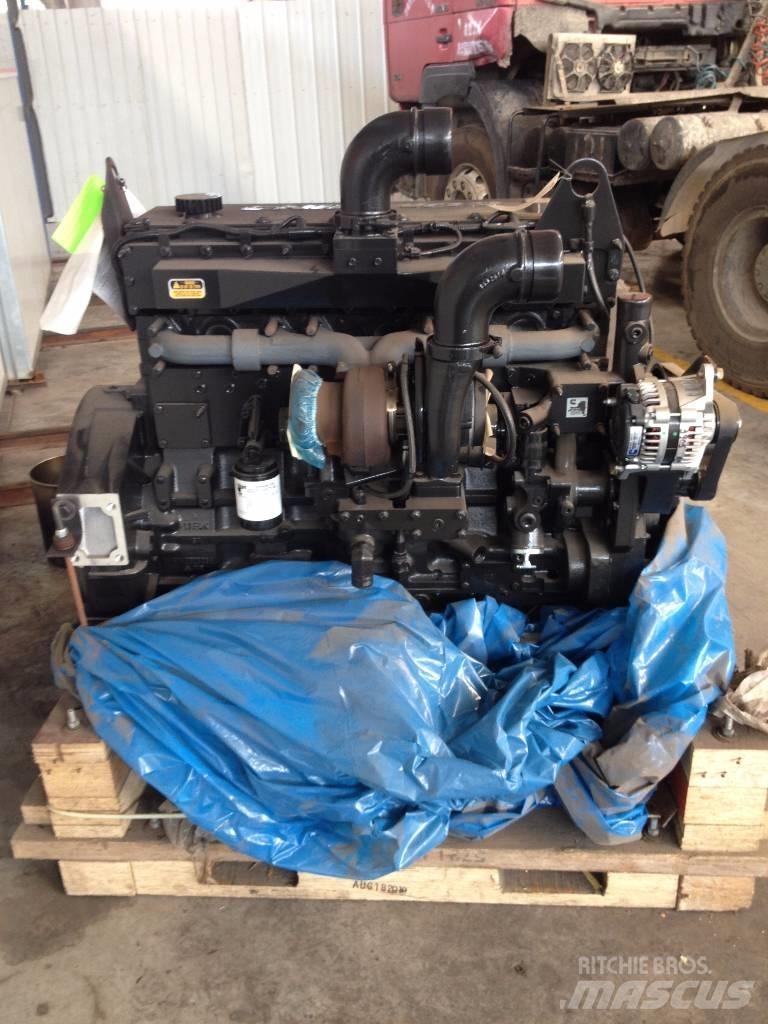

Cummins QSM11-290 Diesel Engine for Industry
General Information of Cummins QSM11-290 Diesel Engine for Industry
Engine Model QSM11-290
Engine Type 6 Cylinders, in Line
Displacement 10.8 L
Bore*Stroke(mm) 125 * 147
Control Method Full Electronic Control System
CPL Number -
Net Weight (with flywleel & alternator) 984 Kg
Overall Diemension(L*W*H) 1308mm*914mm*1280mm
Technical Specification of Cummins QSM11-290 Diesel Engine for Industry
Certification Euro III
Aspiration Turbocharged & Intercooled
Fuel System Direct Injection Pump
Starting Method Electric Start
Cooling Method Water Cooled
Ignition Sequence 1-5-3-6-2-4
Performance Data of Cummins QSM11-290 Diesel Engine for Industry
Rated Power/Speed 216kW/290HP @ 2100rpm
Max.Torque/Speed 1478N.m @ 1400 rpm
Oil Capacity 39 L
Coolant Capacity 9.5L
Overhaul Mileage Over 1,000,000 kilometers
