INFO

Product Group
Telescopic boom lifts
Brand / model

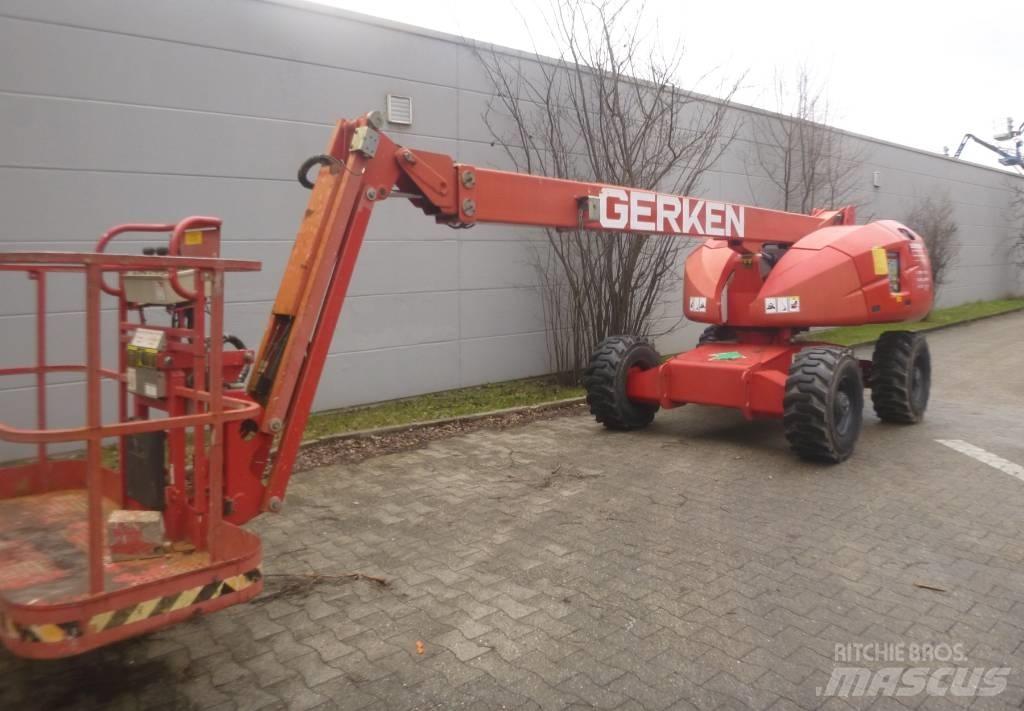

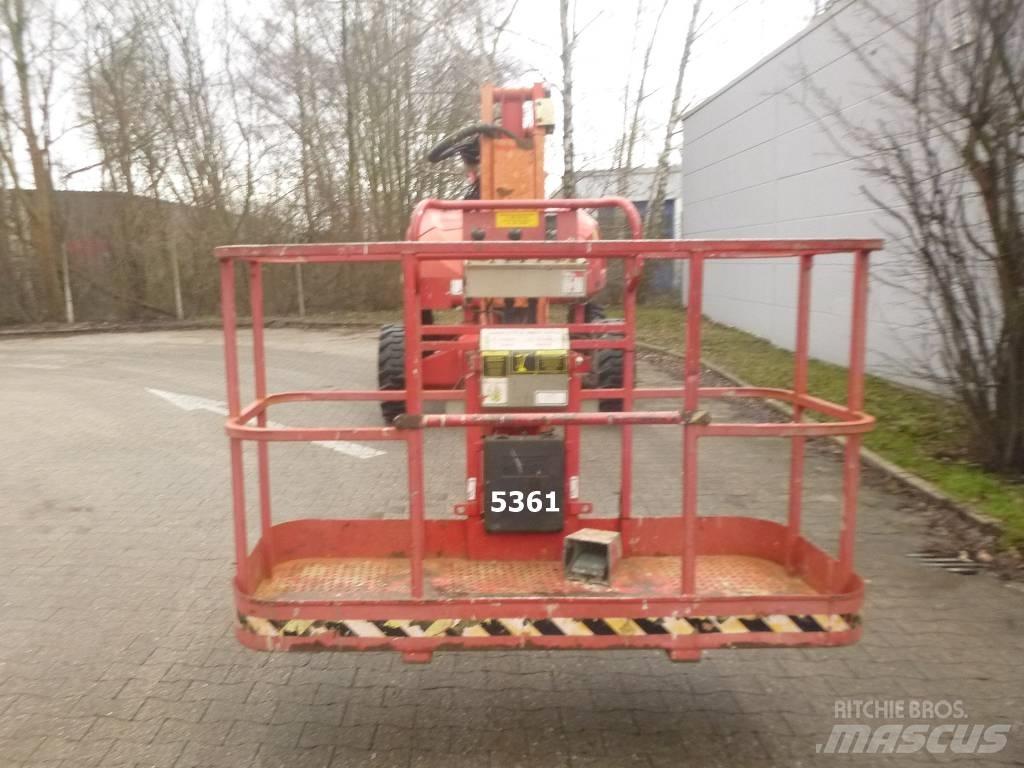

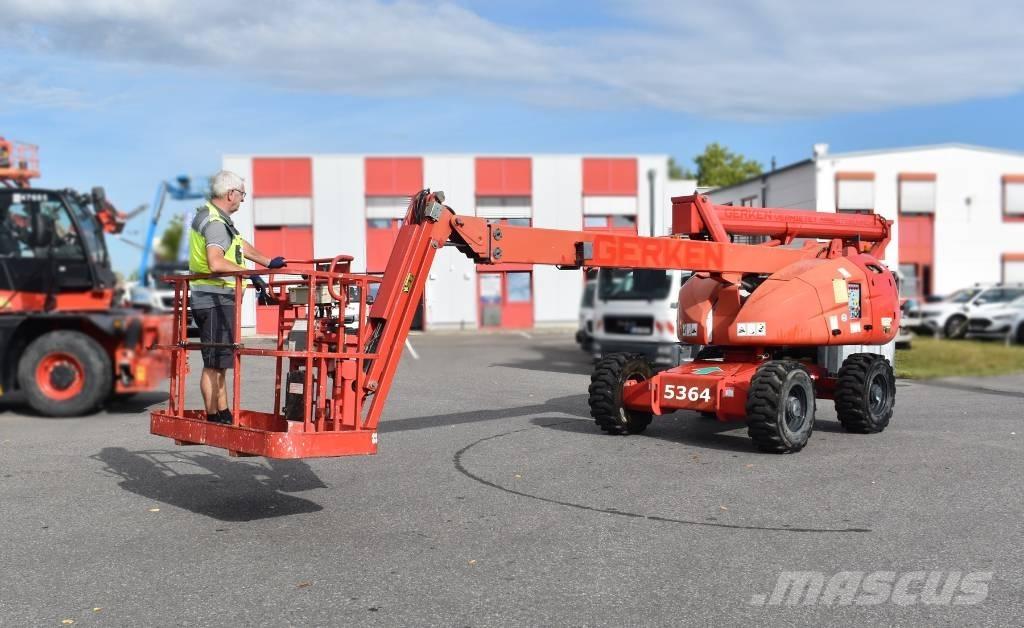

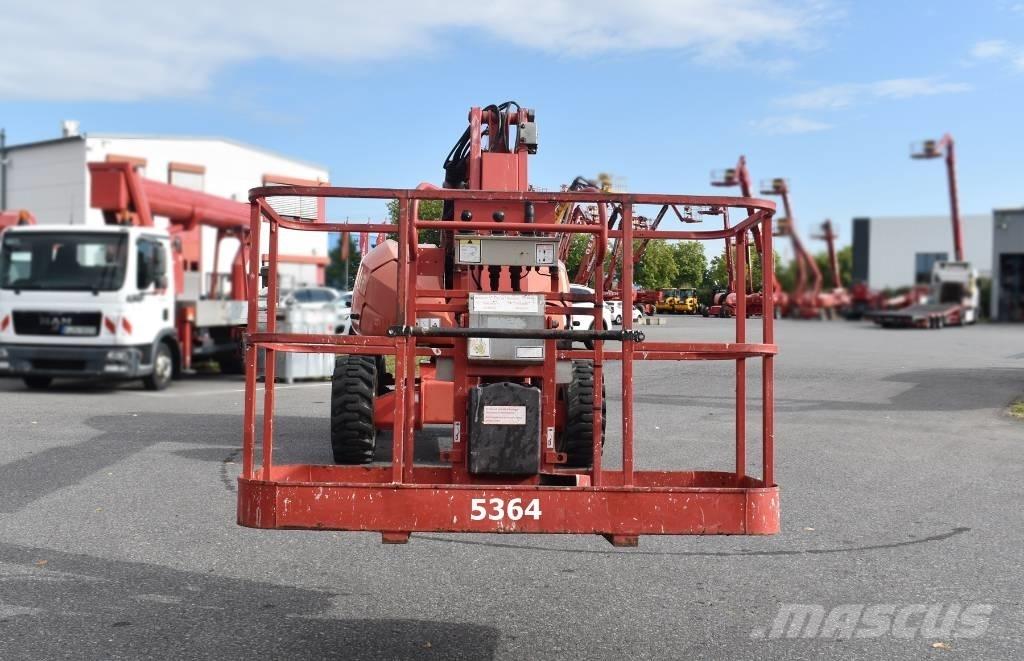

Haulotte H 16 TPX
Manufacture date (yr)
2014
Location
Neuss, Nordrhein-Westfalen
Country
Germany
General grade
1
2
3
4
5
Mascus ID
A9BE22F2

PRICE

Select currency

ITEM DETAILS

Internal stock no.
5361, 5362, 5363, 5364, 5365, 5366, 5367,......
Working height
1,570 cm
Power type
Diesel
Max horizontal reach
1,250 cm
Gross Weight
6,600 kg
Maximum lift capacity
230 kg
Original colour
rot
Transport dimensions (LxWxH)
8400 x 2260 x 2500 mm
Production country
Romania
Delivery terms
EXW
Certificates
CE
Additional Info
Units: 5361, 5362, 5363, 5364, 5365, 5366, 5367, 5368, 5369, 5370, 5371, 5372, 5373, 5374, 5375, 5376, 5377, 5379, 5380, 5381, 5382 Manufacturer: Haulotte Model: H16TPX Year of build: 2014 Condition: Used Data: Max. working height: 15,70 m Max. platform height: 13,70 m Max. reach: 12,50 m Drive type: Diesel Total dimensions LxWxH: 8,40 x 2,26 x 2,24 m Length of transport position: 6,60 m Height transport position: 2,50 m Track widining: 0 m Platform dimensions LxW: 1,81 x 0,78 m Max. basket load: 230 kg Swivel range: 360° Overhang: 0,88 m Movable up to working height: 15,70 m Max. Pitch angle: 50 % Wheel pressure (Support pressure): 41 kN Ground clearance: 0,25 m Own weight: 6.600 kg Special features: Rotatable work basket, basket arm/vertical rotation angle 140°, all-wheel drive, differential lock, permanently installed soot filter.Show more

GS Arbeitsbühnen GmbH

Jagenbergstraße 21 41468 Neuss Nordrhein-Westfalen Germany
