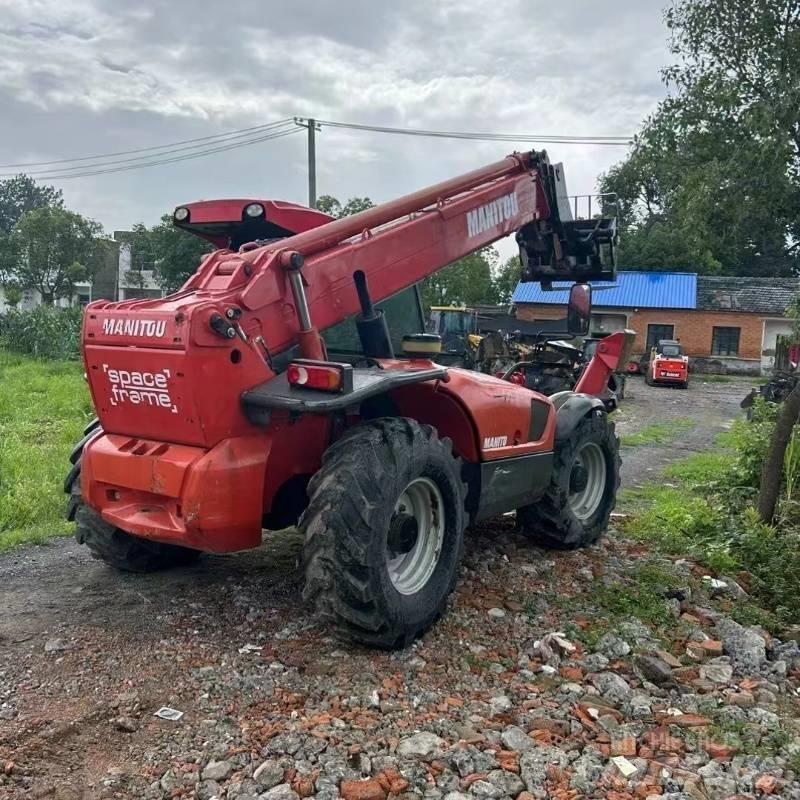

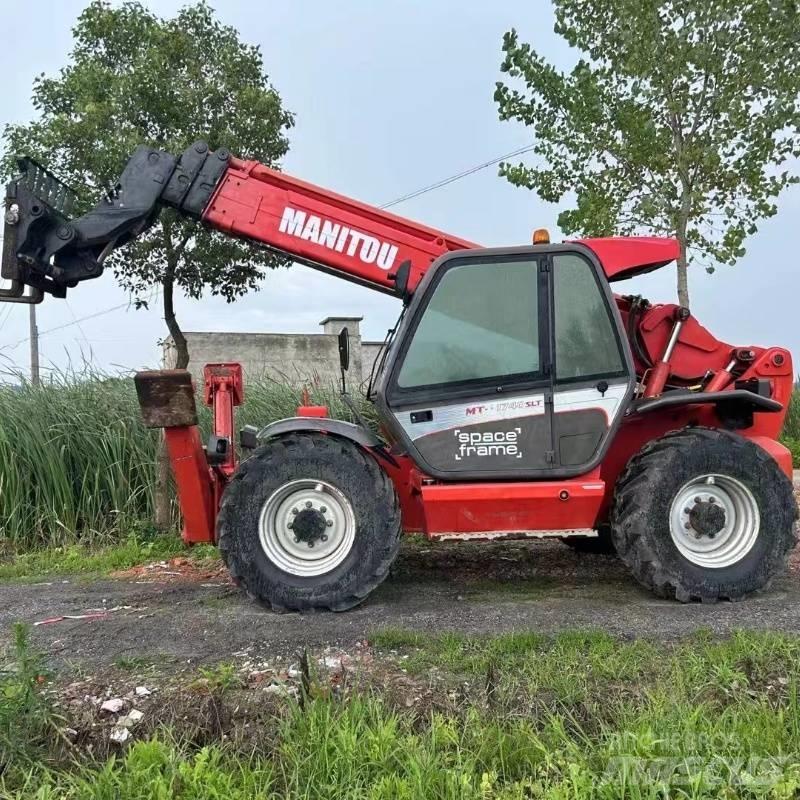

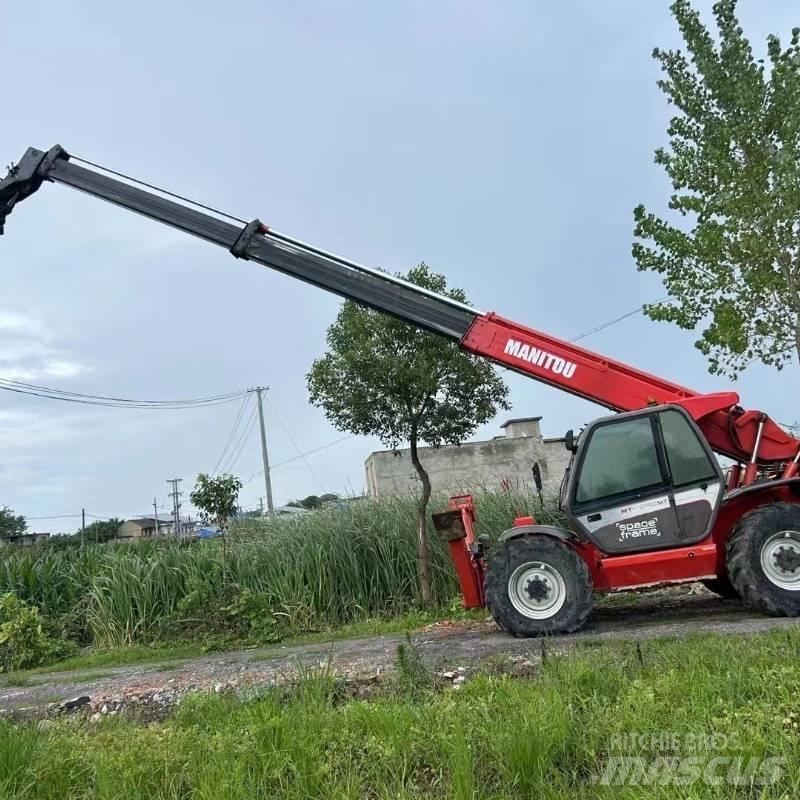

Manitou 1740
Price excl. GST
Print
INFO
Product Group
Telescopic handlers
Brand / model
Manitou 1740
Manufacture date (yr)
2018
Hours Used
3,322 h
Country
China
General grade
1
2
3
4
5
Mascus ID
3049B38E
PRICE
Select currency
ITEM DETAILS
Power type
Diesel
Type
Rotating
Drive type
4x4
Latest Date of Inspection
2024-12-09
Amount of previous owners
1
Gross Weight
11,200 kg
Maximum lift capacity
3,500 kg
Registration number
1
Cabin type
Enclosed cab
Emission level
Stage V / Tier V
Engine
珀金斯Perkins 1104D-44T
Body type
Fixed frame
Power Output
74.5 kW (101 hp)
Engine manufacturer
珀金斯
Top speed
25 km/h
Original colour
Red
Transport dimensions (LxWxH)
718059802.425 m
Condition info/guarantee
1 Year
Front tyres remaining
98
Rear tyres remaining
2
Production country
France
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Forks
Air conditioning
Bucket
Additional Info
基本性能
发动机功率(kW)74.5/2200
操作重量(千克)11220
额定载荷(kg)4000
马力(马力)100马力以上
最大载荷(公斤)3500公斤以上
作业参数
最大提升能力(kg)4000
举升角度范围 最低/最高(°)-0.028967254
最大提升高度(m)16.65
最大外伸长(m)12.35
最大外伸长倾翻载荷(kg)957
转弯半径(m)5709
发动机
型号珀金斯Perkins 1104D-44T
额定功率(kw/rpm)74.5/2200
最大扭矩(N.m)412/1400
排量(L)4.4
液压系统
系统最大工作压力(bar)260
系统最大流量(L/min)196
传动系统
档位4
最大行驶速度(km/h)25
轮胎尺寸440/80-24
油类容量
燃油箱(L)135
机油油箱(L )11
发动机冷却液(L)18.5
变速箱油(L)16
液压系统(L)175
外形尺寸
整机全长(mm)7180
整机全长(mm)5980
整机全宽(mm)2425
整机全高(mm)2785
驾驶室高(mm)2605
方向盘离地高(mm)1880
轴距(mm)2770
轮距(mm)1990
离地间隙(mm)480
离去角(°)50
