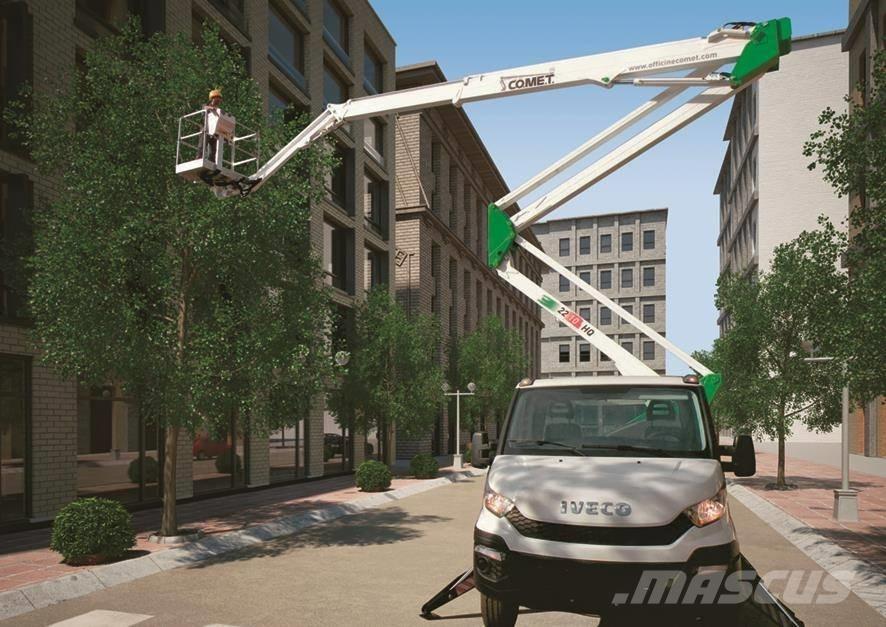

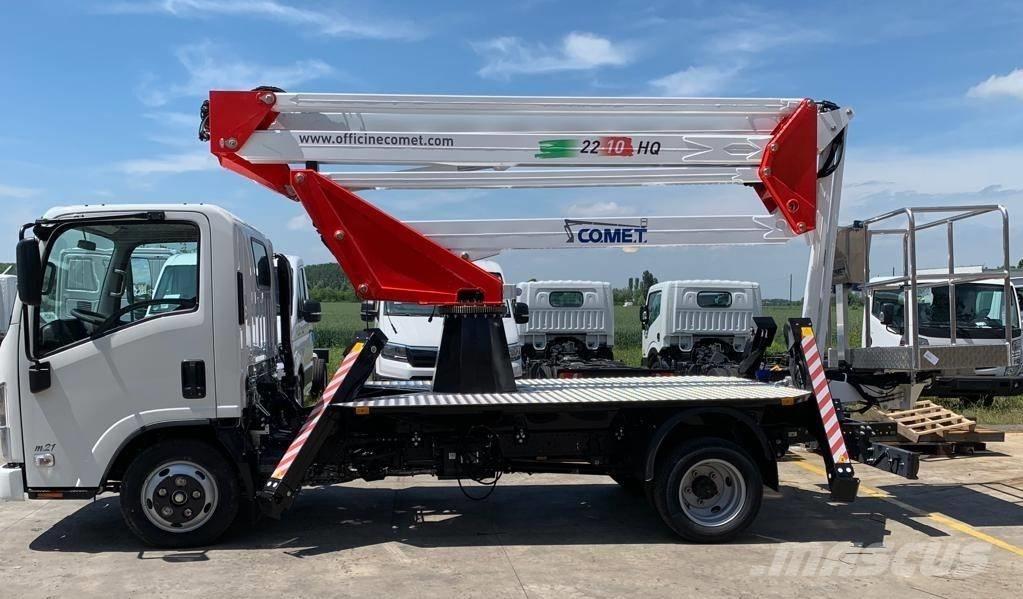

Comet 22/2/10 Truck mounted platforms
Comet 22/2/10 Truck mounted platforms
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
Truck mounted platforms
Brand / model
Comet 22/2/10
Manufacture date (yr)
2025
Condition
New/unused
Location
Castello D'Argile, Bologna
Country
Italy
General grade
1
2
3
4
5
Mascus ID
91DBF3E2

ITEM DETAILS

Working height
2,200 cm
Power type
Diesel
Boom type
Articulated
Max horizontal reach
1,000 cm
Emission level
Stage VI / Tier VI
Gross Weight
3,500 kg
Maximum lift capacity
200 kg
Original colour
Bianco
Undercarriage brand
Comet
Production country
Italy
Delivery terms
EXW
Certificates
CE
Documents
NEW-EUROSKY-HQ-18-22-BINGRU.pdf77FT00005-SCHEDA-TECNICA-NEW-ESK-22-2-10-JIB-HQ-ISUZU-M21-P2750.pdf77FT00004-SCHEDA-TECNICA-NEW-EUROSKY-22-2-10-HQ-JIB-SU-IVECO-DAILY-35S-P3450.pdf
Additional Info
AERIAL WORK PLATFORM 22 M WITH JIB OF 35 CWT TRUCK Working height 21.5 m, Jib side 10 m, capacity 200 kg in the cage (no. 2 persons) 360 ° continuous rotation, low pressure hydraulic controls 100% No need for limiting lateral range (100% SAFE): the operator can move throughout the workspace without disruption while respecting the maximum capacity of the spacecraft of 200 kg Dimensions spacecraft aluminum: 1400x700x1100 mm Hydraulic Rotation ship: 90 ° + 90 °, 100% hydraulic controls that enable two movements at the same time, self-leveling of the spacecraft continuously and gradually with independent hydraulic circuit, on and off the vehicle engine from the spacecraft, Indicators of early warning and overload alarm in the cage, lamp centering arm in the rest position, Socket 230 V plug socket in the cage with anti-collision system for tower arm-cabin order not to hurt the car side to side or vertically moving the arm (buzzer and stop). Anti-collision spacecraft-not to knock the jib arm while rotating to the right or left side of the spacecraft (buzzer and stop) .Celle load: detection device of the load in the cage consisted of. 3 load cells and management card with redundant control of operation, visual and audible alarm-locking movement in case of overload All on Nissan Cabstar 35 q.li (pat B) other information and data sheets on the siteShow more

Bini Gru

Via Aldo Moro,62 40050 Castello D'Argile Bologna Italy
