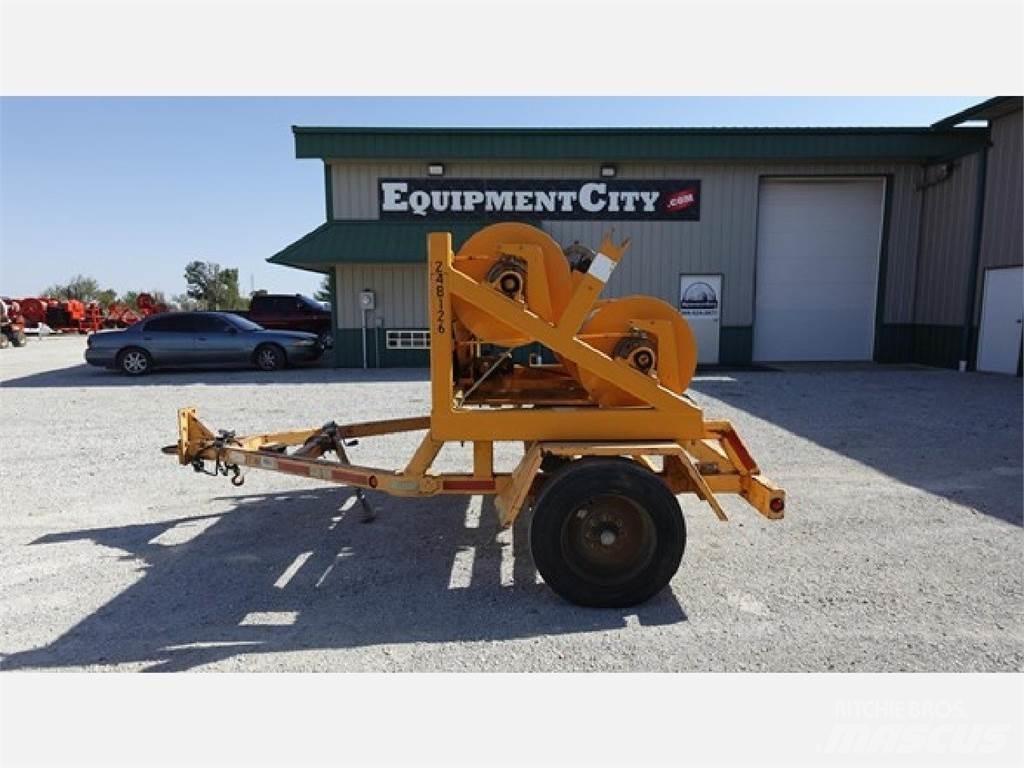

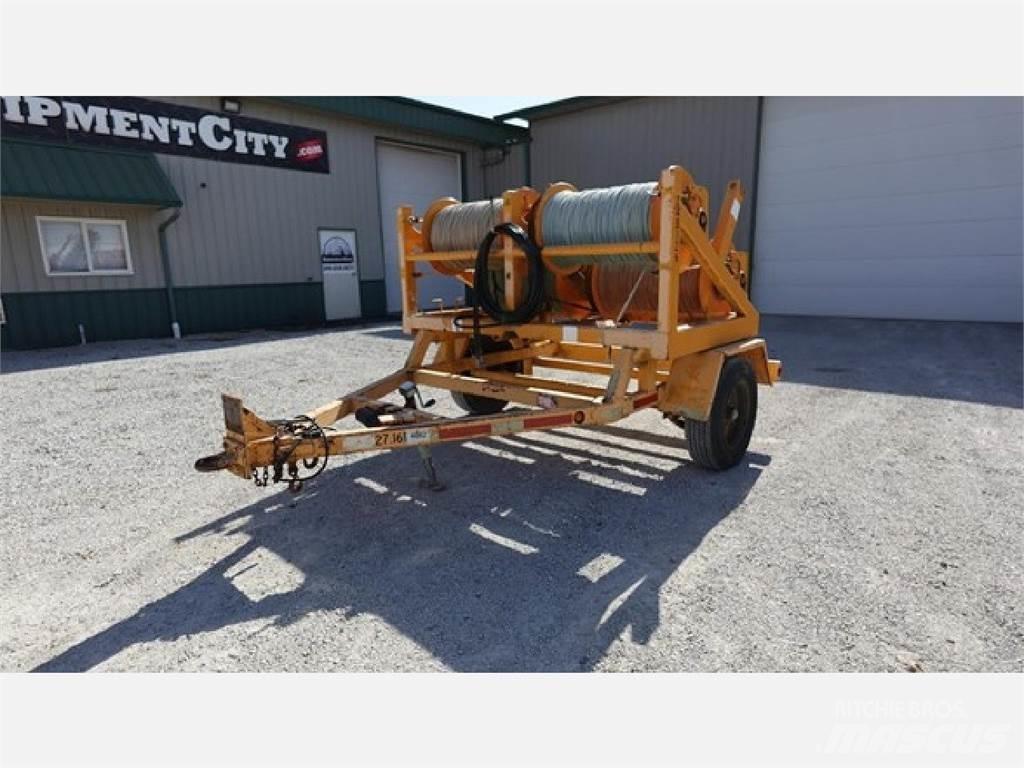

TSE 2501 PLW

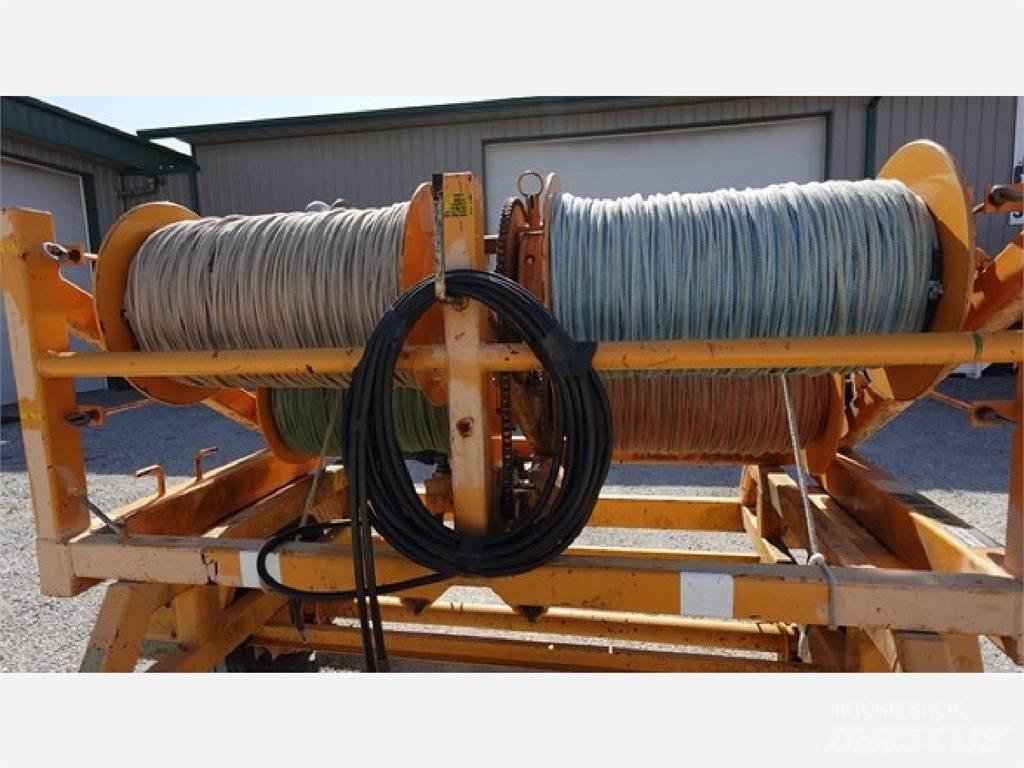

Standard leadscrew levelwinder. Free wheeling drums with disc drag brakes. Fine control manual calipers on drag brakes. Individual drum clutches. Anti-rotation device on drive system. Rated Line Pull- empty drum 1,650 lbs. (Based on 15 g.p.m. ... 2,000 psi) Rated Line Pull- Full drum 875 lbs. (Based on 15 g.p.m. ... 2,000 psi) Maximum Line Pull ... 3,000 psi (intermittent only) empty drum 2,000 lbs - Full drum 1,000 lbs. DIMENSIONS: Length 92", Width 52", height 53", & Weight (less rope) 2,100 lbs. REEL CAPACITY: 5/16" rope 8,500 ft., 3/8" rope 6,000 ft., 7/16" rope 4,500 ft., & 1/2" rope 3,500 ft.
