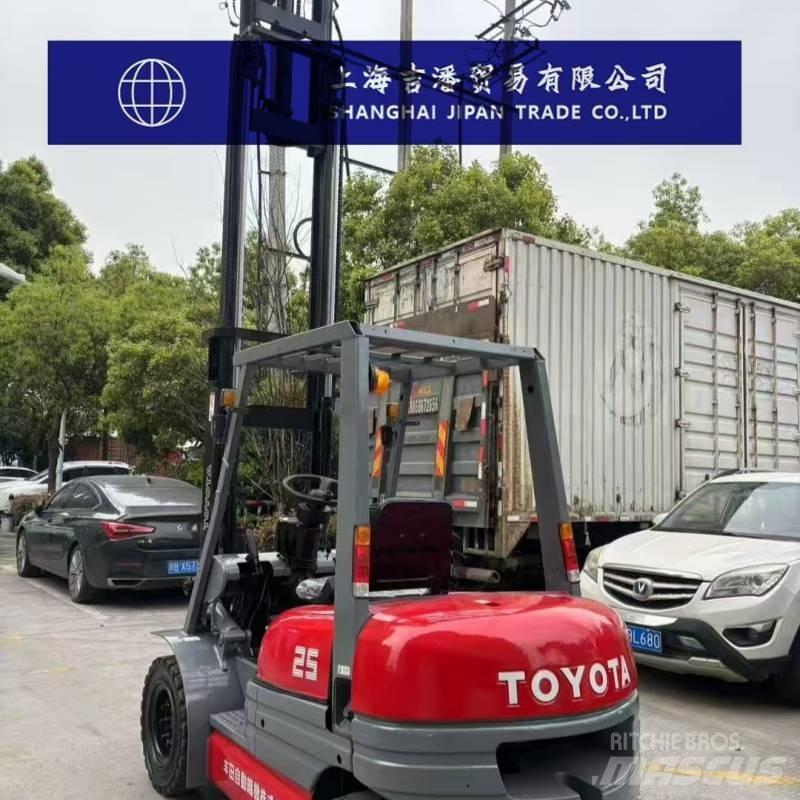

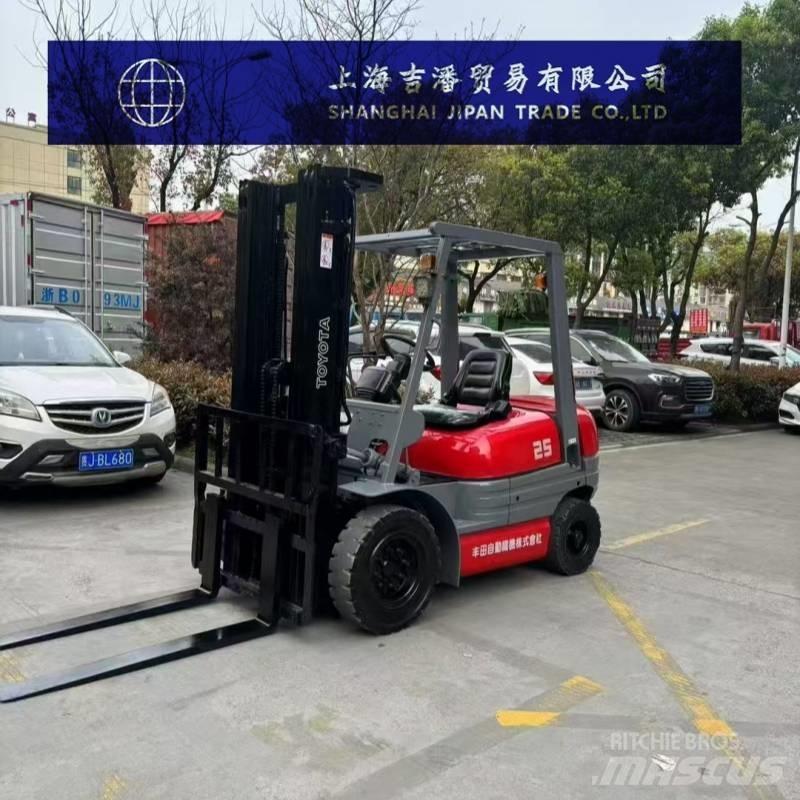

Toyota FD 25

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Load-bearing capacity: 2500kg Load center distance: 500mm Maximum lifting height: 6000mm Mast tilt Angle: Forward tilt 6°, backward tilt 12° Overall dimensions Total length: 2650mm Total width: 1150mm Total height: 2130mm Wheelbase: 1700mm Track: Front wheels: 960mm Rear wheel: 970mm Minimum ground clearance: 130mm Minimum turning radius: 2260mm Driving speed Full load: 18km/h No-load: 20km/h Climbing ability: 27% Engine Model: Toyota diesel Type: Inline four-cylinder, water-cooled, turbocharged Displacement: 2486cc Rated power: 33kW/2200rpm Maximum torque: 148 n.m /2100rpm Transmission Type: Power shift Forward gear: 1 Reverse gear: 1 Hydraulic system Working pressure: 17.5MPa Oil pump flow rate: 48L/min Fuel tank capacity Fuel tank: 60L Hydraulic oil tank: 50L
