Hangcha CDD16-XT1-SI / CDD16-XT1 BL | 2026
POA
Print
INFO
Product Group
Low lifter
Brand / model
Hangcha CDD16-XT1-SI / CDD16-XT1 BL | 2026
Manufacture date (yr)
2026
Hours Used
1 h
Condition
New/unused
Location
Sittard, Limburg
Country
Netherlands
Mascus ID
ABC54404
ITEM DETAILS
Power type
Electric
Maximum lift capacity
1,600 kg
Distance of centre of gravity
600 mm
Maximum lift height
4,500 mm
Free lift
1,490 mm
Drive height
1,990 mm
Lift mast
Triplex
Fork length
1,150 mm
Cabin
No cabin/Other
Transmission
Elektrisch
Power Output
2.20 kW (2.99 hp)
Engine manufacturer
Hangcha
Battery brand
EVE
Battery voltage
48 V
Battery capacity
105 Ah
Charger voltage
48 V
Charging current
20 A
Transport weight
1,120 kg
Transport dimensions (LxWxH)
2021 x 800 x 1990 mm
Production country
China
Additional Info
=== KEY SPECIFICATIONS ===
Year: 2026
Hours: 0.3 h
Machine type: Electric pedestrian pallet stacker with initial lift
Maximum lifting capacity: 1,600 kg
Initial lift capacity: 2,000 kg
Maximum lifting height: 4,500 mm
Mast type: Triplex full free lift
Free lift: 1,490 mm
Load centre: 600 mm
Fork dimensions: 1150x185x65 mm
Outside fork width: 570 mm
Battery: 48 V / 105 Ah Li-ion
Operating weight: 1,120 kg
Serial number: 80BF01131
=== EQUIPMENT & FEATURES ===
Built-in 48 V / 20 A battery charger
Initial lift function

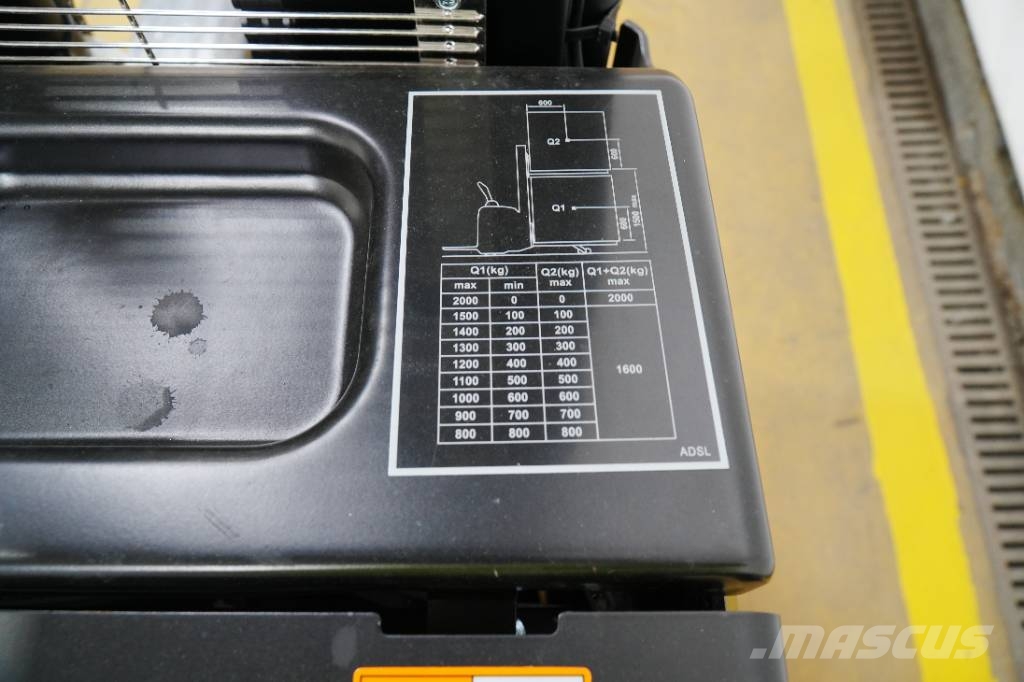

Double pallet handling capability
Permanent magnet synchronous drive motor
Proportional fork lifting and lowering
Multi-function tiller
Turtle speed function

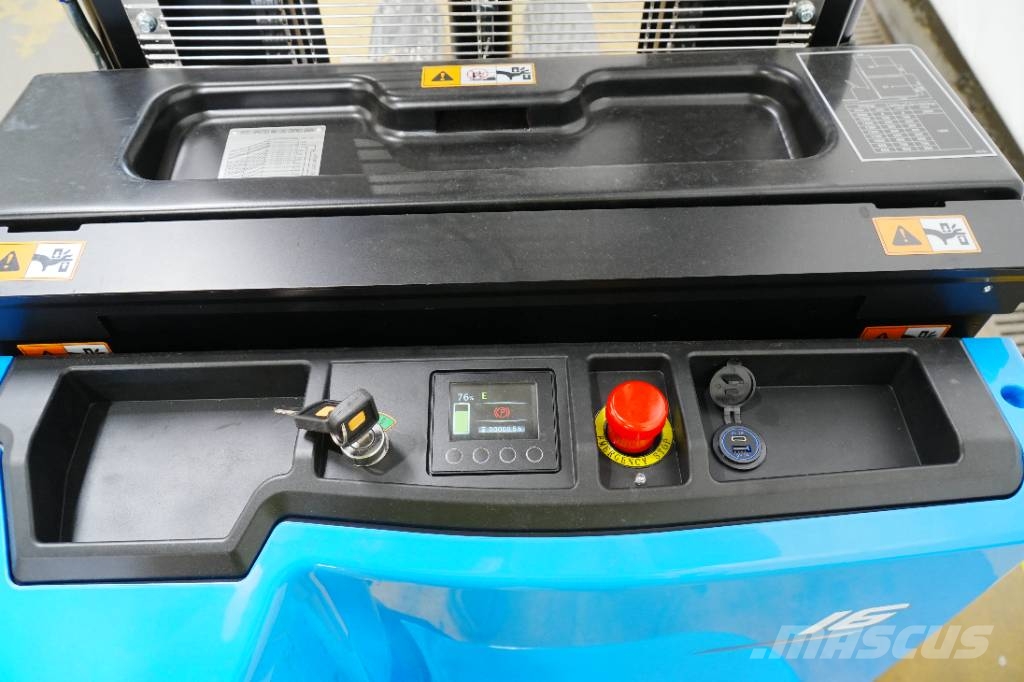

Interactive display
Emergency disconnect switch
Hydraulic power unit
PU wheels
Dual load wheels
=== CONDITION ===
New and unused machine with only 0.3 delivery and testing hours.

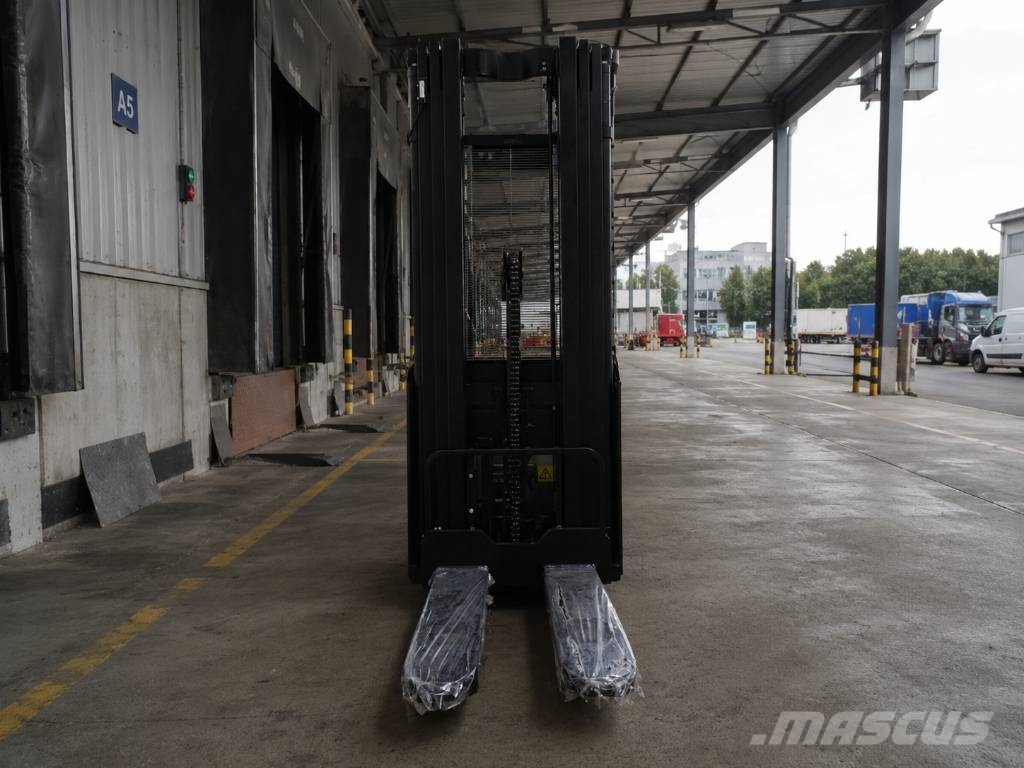

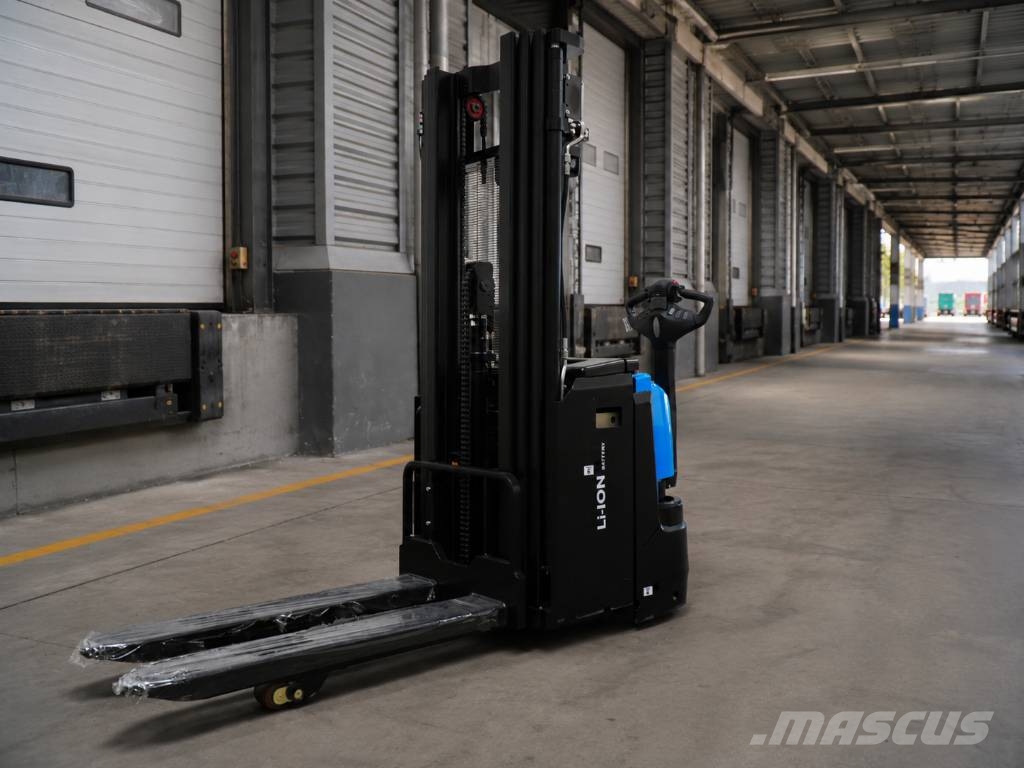

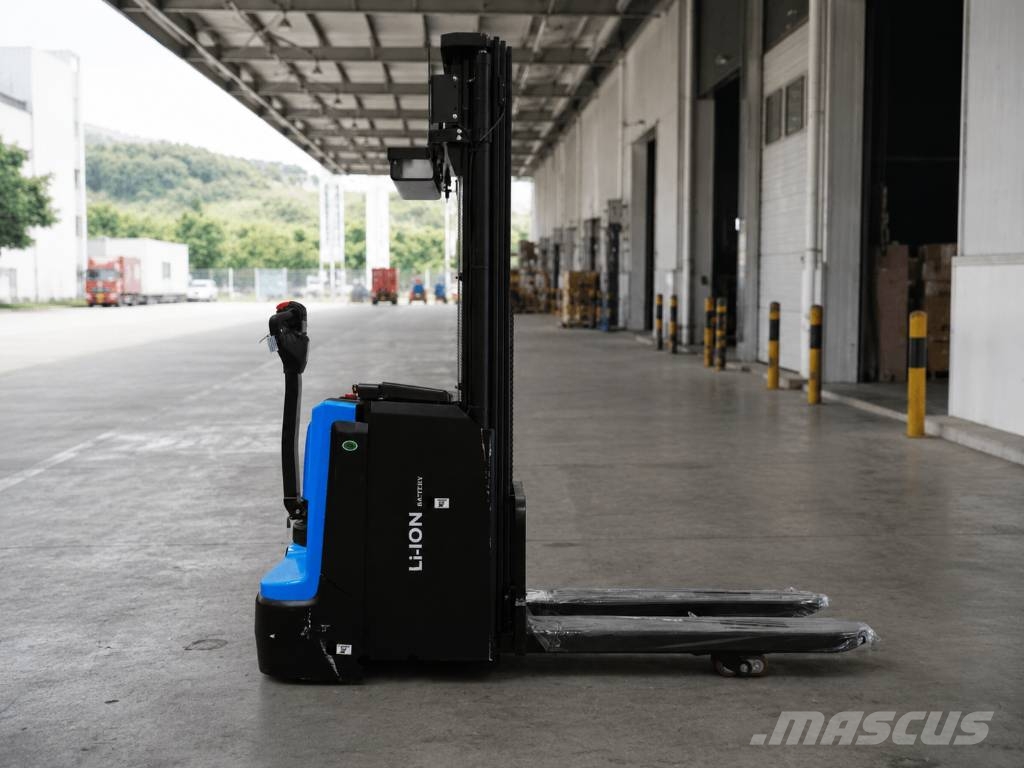

The forks still have protective transport wrapping, as shown in the photographs.
Inspection and operational testing are possible by appointment.
=== DESCRIPTION ===

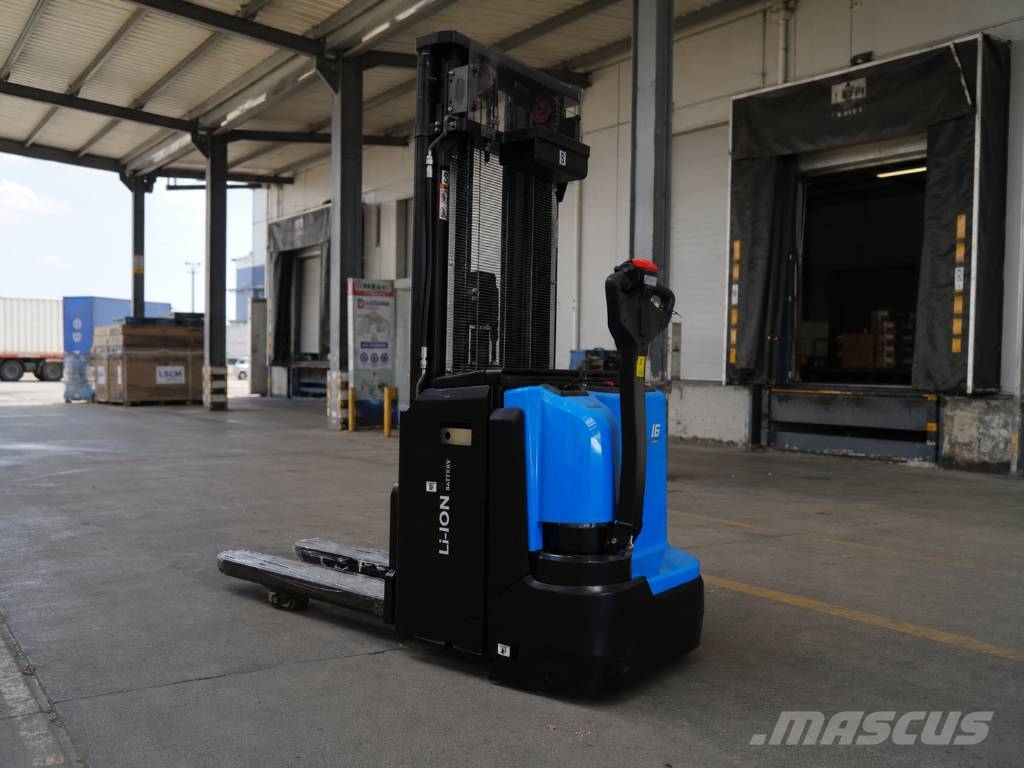

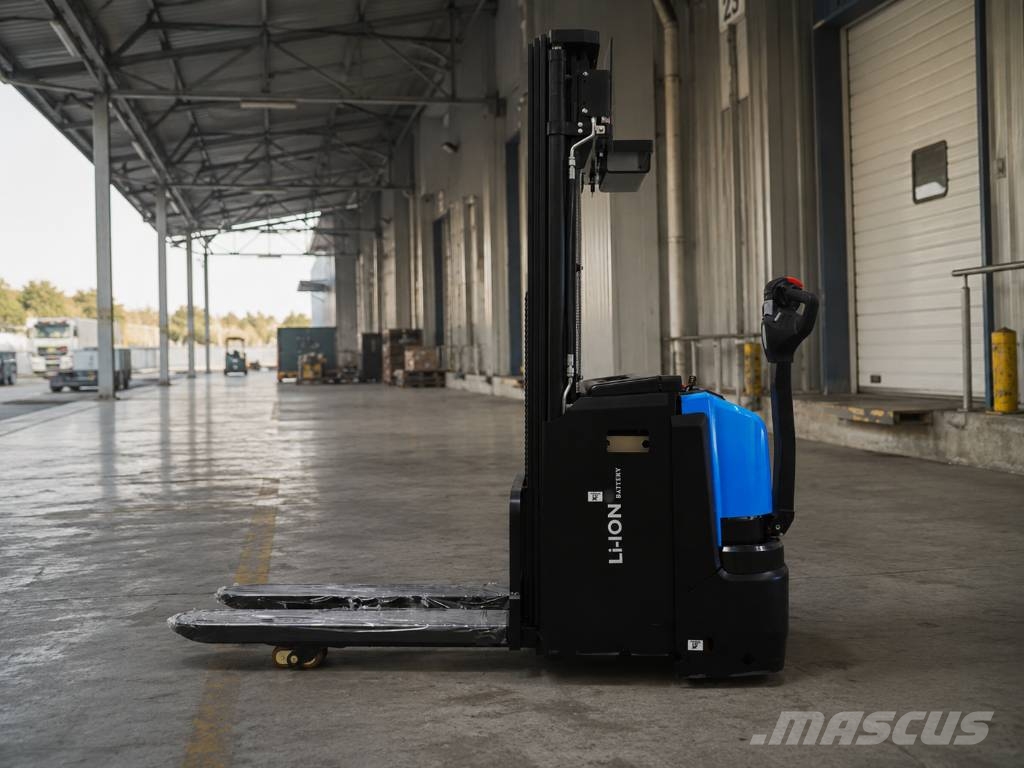

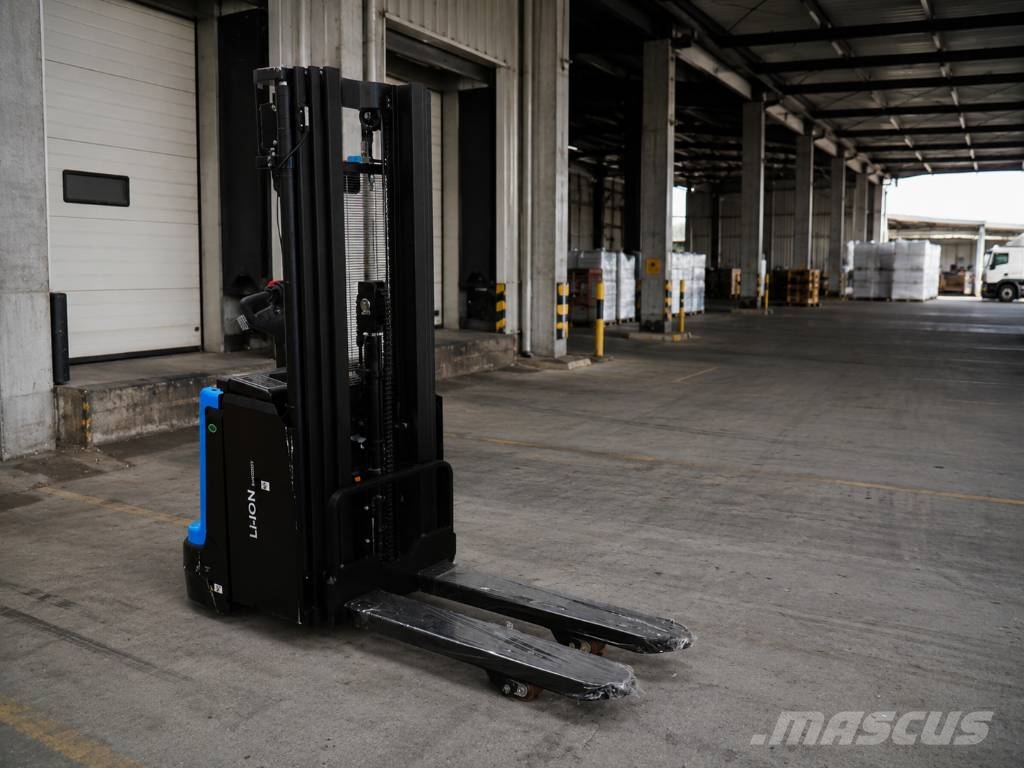

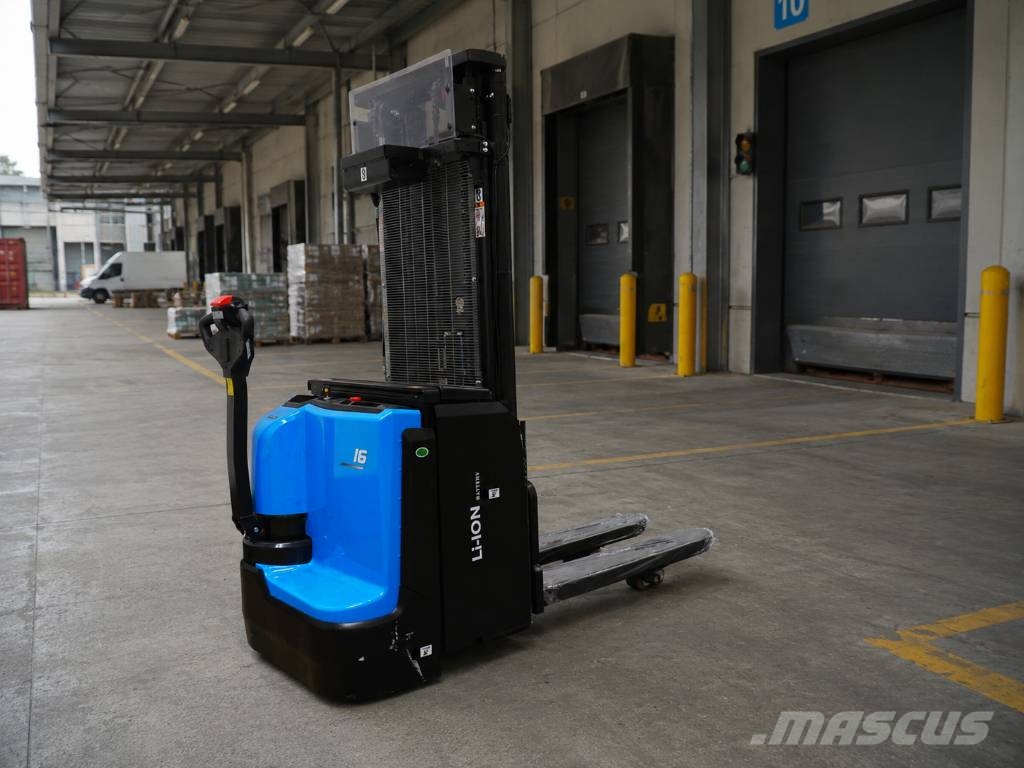

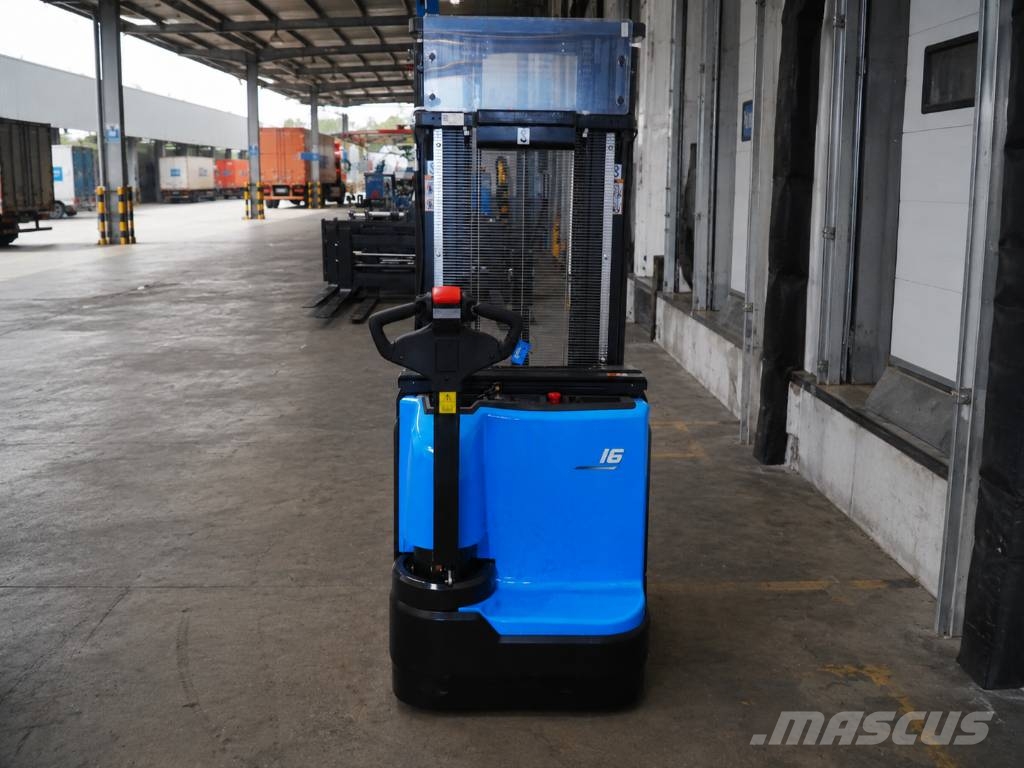

2026 Hangcha CDD16-XT1-SI BL electric pedestrian pallet stacker with only 0.3 testing hours, a lifting capacity of 1,600 kg and a maximum lifting height of 4,500 mm.
Equipped with a triplex full free lift mast, initial lift, 48 V / 105 Ah lithium-ion battery and built-in charger. The machine is suitable for stacking, internal pallet transport and handling two pallets simultaneously in warehouses and logistics facilities.
=== PRICE, LOCATION & DELIVERY ===
Price: On request
Location: Sittard, the Netherlands
Delivery terms: EXW
Worldwide transport can be arranged by Collé Rental & Sales.
Colle Rental & Sales SITTARD
Nusterweg 100 6136 KV Sittard Limburg Netherlands
