Grove GMK4070

Price excl. GST

Compnay LOGO
Images11

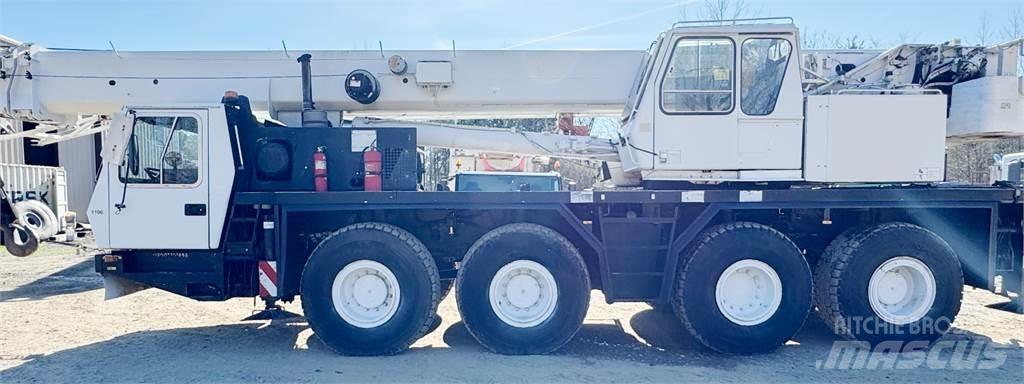

Grove GMK4070 All terrain cranes
Grove GMK4070 All terrain cranes
Grove GMK4070 All terrain cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
All terrain cranes
Brand / model
Grove GMK4070
Manufacture date (yr)
1999
Location
Arkansas, USA, Arkansas
Country
United States
General grade
1
2
3
4
5
Mascus ID
E9AF26A9

PRICE

Select currency

ITEM DETAILS

Internal stock no.
969
Maximum lift capacity
85,000 kg
Maximum lift height
3,810 cm
Attachments
https://freecranespecs.com/Grove/GMK4070
Additional Info

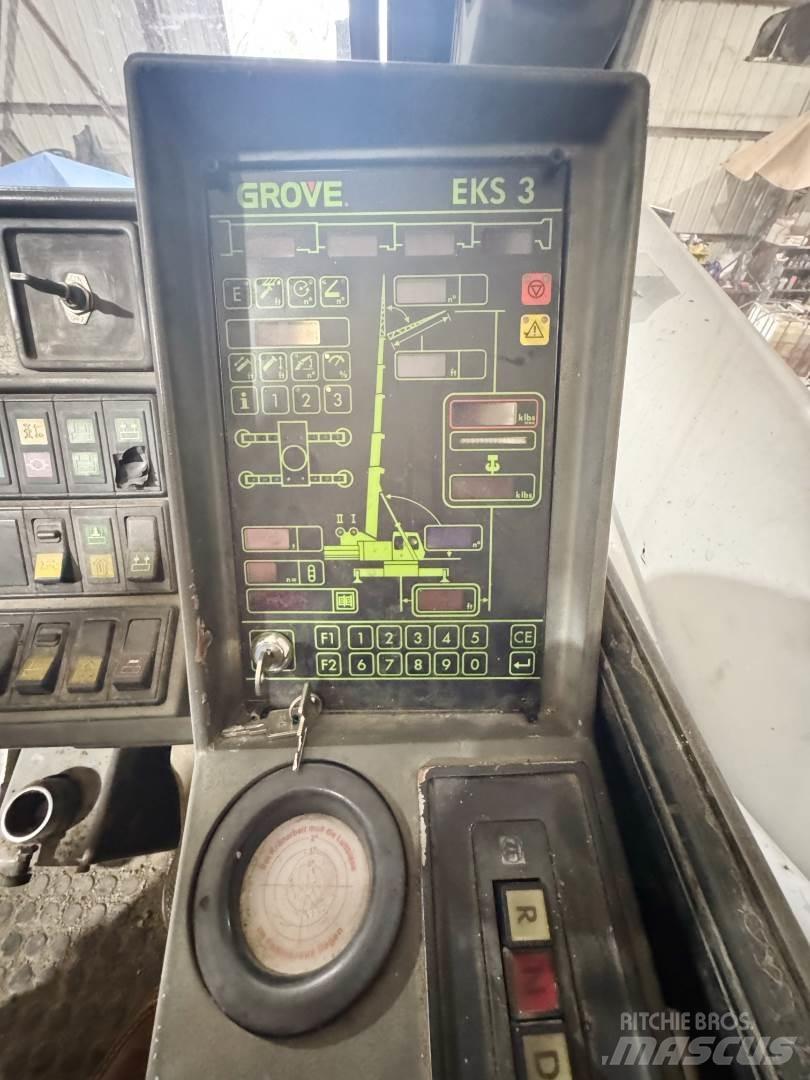

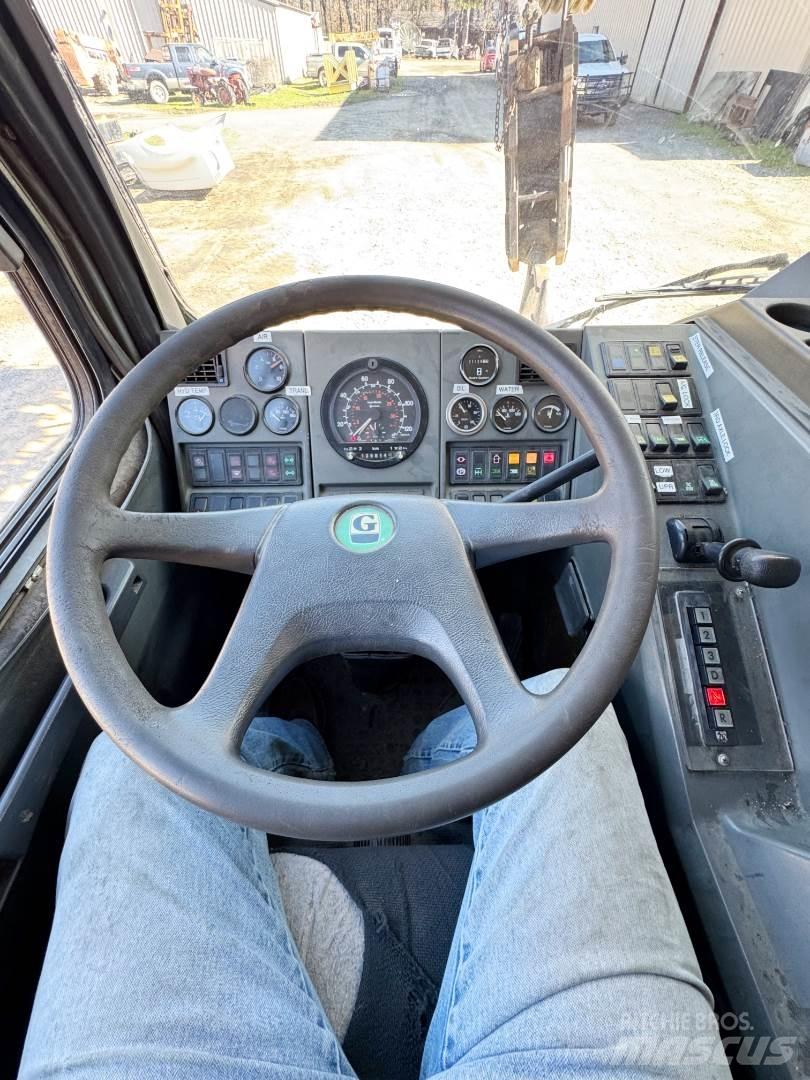

1999 Grove GMK4070, 85 Ton, All Terrain Crane; CranesList ID: 969 38-125’ Five Section Full Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave 32.8'- 52' hydraulic off-settable lattice Swing Away Extension (Jib). Offsettable at  0°, 16°, 30°), Main and Auxiliary Winches with 19 mm Wire Rope Drum Rotation Indicator, EKS3 Load Moment Indicator (LMI) and independent anti-two block system with audio visual warning and control lever lock-out. These systems provide electronic display of boom angle length, radius, tip height, relative load moment,maximum permissible load, load indication, and warning of impending two-block condition with lock-out hoist function, Control System: Stepless control of all crane movements using control levers with automatic reset to zero Hook Ball Three Sheave Hook Block 29,500# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab All-aluminum constructed Operator's cab:  full vision, safety glass, adjustable operator's seat with hydraulic suspension, engine-independent heater. Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls. Drive/steer controls 8.3' wide Grove Two-man Carrier Cab, Aluminium, 2-man-design, safety glass, driver and passenger seat with hydraulic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls, 8 x 6 x 8 Drive/Steer Carrier Mercedes-Benz Eight Cylinder Water Cooled, Turbocharged, Diesel Engine - Rebuilt on 5.2020 with only 2,765 Hours since the rebuild - Engine rebuilt in 2020 with 19,250 hours), ZF Automatic Transmission, Front and Rear Tires: 14.00 R25 Grove exclusive MEGATRAK Suspension Outriggers: 4 double hydraulic telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the crane operator's cab. Sight level gauge. This retail fleet crane is used daily and is fleet maintained Certified, ... IN ARKANSAS! Show more
