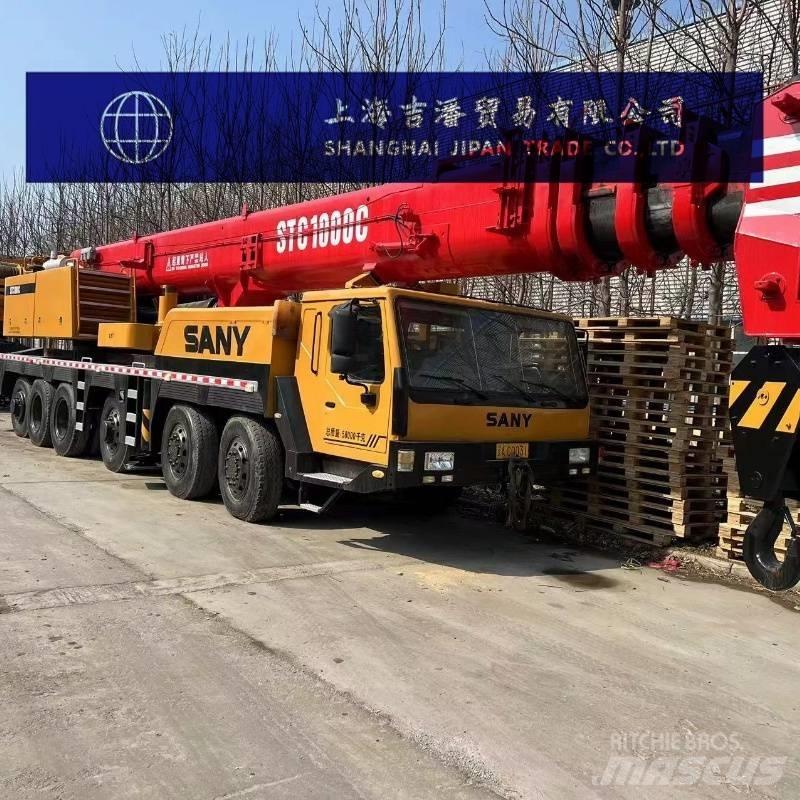

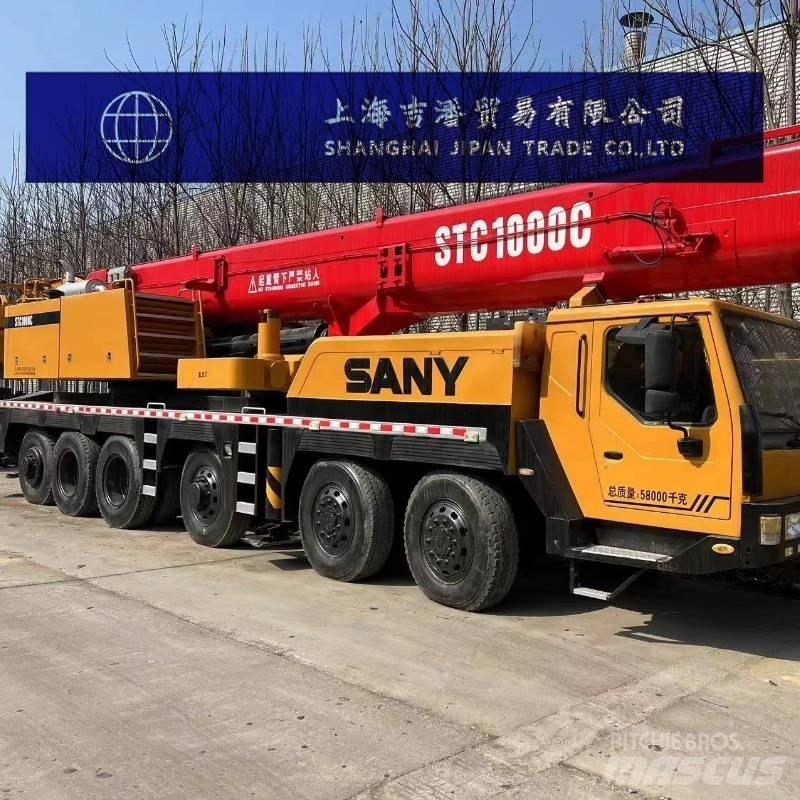

Sany STC 1000

FLY JIB HOOK COUNTERWEIGHT ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

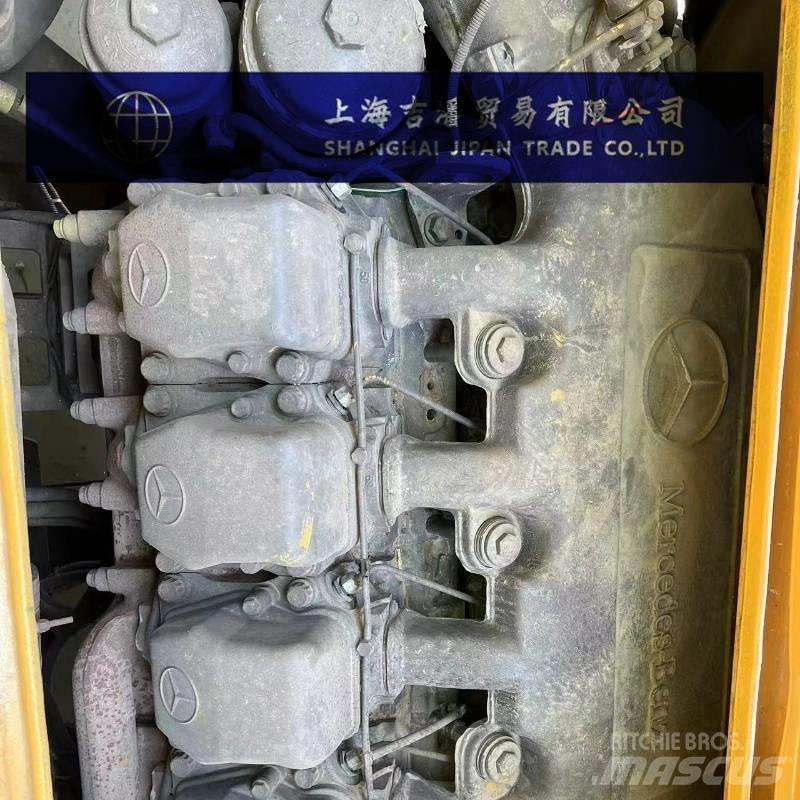

Lifting capacity Maximum rated lifting capacity (t) : 100 Maximum rated lifting moment (KN.m) : 4320 The maximum rated lifting moment for fully extended boom (KN.m) is 1800 Minimum working range (m)3 Maximum lifting height - base arm (m)13.9 Maximum lifting height - fully extended boom (m)60 Maximum lifting height - basic boom + auxiliary boom (m)78.1 Maximum lifting capacity (tons) : 91-180 tons Maximum lifting capacity (tons) : 91-180 tons Boom size The basic number of arm segments is 6 Boom length - basic boom (m)13.25 Boom length - fully extended boom (m)60 Boom length - basic boom + auxiliary boom (m)78.1 The installation angles (°) of the auxiliary boom are 0, 15, and 30 Operation speed parameter The maximum lifting speed of the main hoist (m/min) is 135 The maximum lifting speed of the auxiliary hoist (m/min) is 135 The full extension time of the boom (s) is 420/400 The luffing time of the boom (s) is 60/80 Rotational speed (rpm) : 0 to 2.5 Engine The chassis engine model is Mercedes-Benz OM502 LA Rated power (kw/rpm) : 375 The engine for the vehicle is either a Cummins QSB6.7 from the United States or a Mercedes-Benz OM906LA.E2/5 Rated power (kw/rpm) : 144 or 150 Driving parameters Maximum driving speed (km/h) : 85 Minimum turning radius (m)11 Maximum climbing gradient (%) : 45 The approach Angle/departure Angle (°) is ≥21 Minimum ground clearance (mm)310 Overall machine specification The total length of the entire machine is 15,396 mm The full width of the entire machine (mm) is 3000 The total height of the entire machine (mm) is 4000 Working weight (t) : 54,950 Outrigger span Longitudinal × transverse (m)7.6×7.6
