Product Group
Crawler excavators
Brand / model

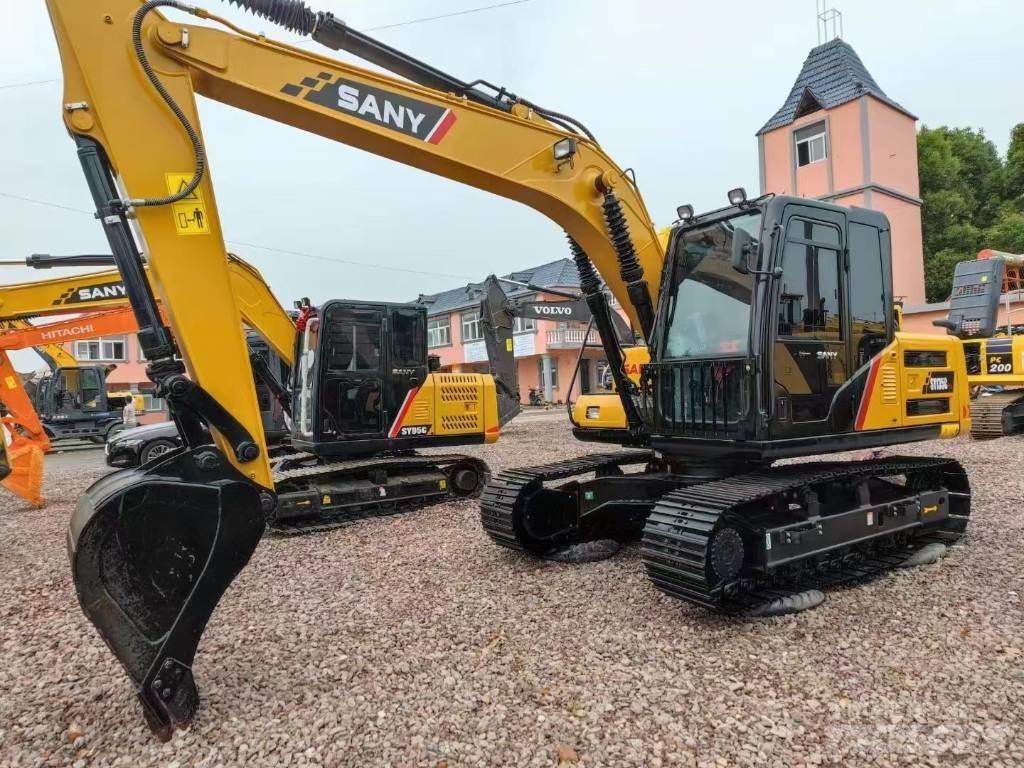

Sany SY 135 C Pro
Manufacture date (yr)
2022
Country
China
General grade
1
2
3
4
5
Mascus ID
8C6CB0D8

PRICE

Select currency

ITEM DETAILS

Power type
Diesel
Full log books
Yes
Latest Date of Inspection
2024-05-27

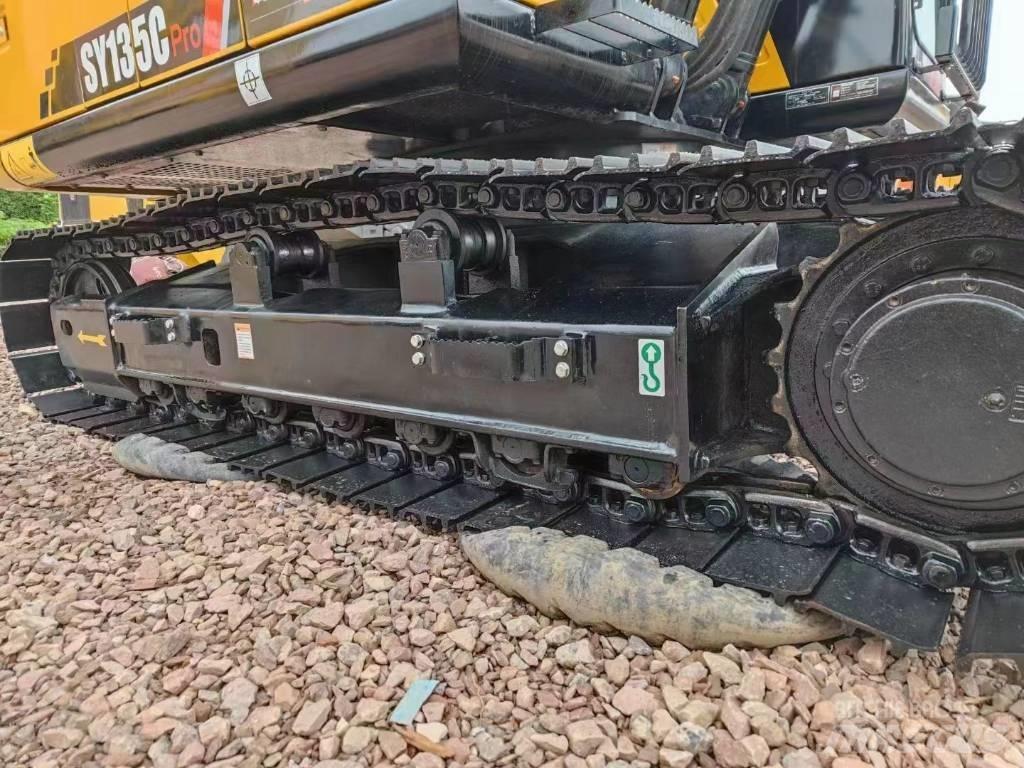

Undercarriage condition
perfect
Engine
ISUZU 4JJ1-XDJAG-07-C3
Gross Weight
13,500 kg
Power Output
73 kW (99.3 hp)
Engine manufacturer
ISUZU
Bucket capacity
0.60 m3
Track width
500 mm
Transport dimensions (LxWxH)
7.7/2.55/2.815 m
Condition info/guarantee
perfect
Production country
China
Delivery terms
FCA, FAS, FOB, CFR, EXW
Certificates
EPA, CE, ANSI, AS
Additional Info
Main Performances: ·Travelling speed(km/h):3.5/5.3 ·Swing speed(r/min):12 ·Gradeability(%):70 ·Digging force of bucket(kN):103 ·Digging force of arm(kN):67.4 Working Range: ·The maximum excavating height(mm):8685 ·The maximum unloading height(mm):6180 ·The maximum excavating depth(mm):5510 ·The maximum excavating radius(mm):8290 ·The maximum vertical excavating depth(mm):4890 Boundary Dimension: ·Track length(mm):3665 ·Boom length(mm):4600 ·Arm length(mm):2500 ·Wheel base of track(mm):1990 ·The minimum rotation radius of the rear end(mm):2240 ·The minimum ground clearance(mm):425 Oil Capacity: ·Fuel tank volume(L):240 ·Hydraulic oil tank volume(L):150 ·Engine oil capacity(L):15Show more

HEFEI XIANMING CONSTRUCTION MACHINERY CO.,LTD.

中国安徽省合肥市包河区滨湖区中山路1522号佳源都市小区美泉宫26幢及配套商业2幢702室 230041 合肥市 安徽 China
