Volvo EC 290

Price excl. GST

Compnay LOGO
Images8

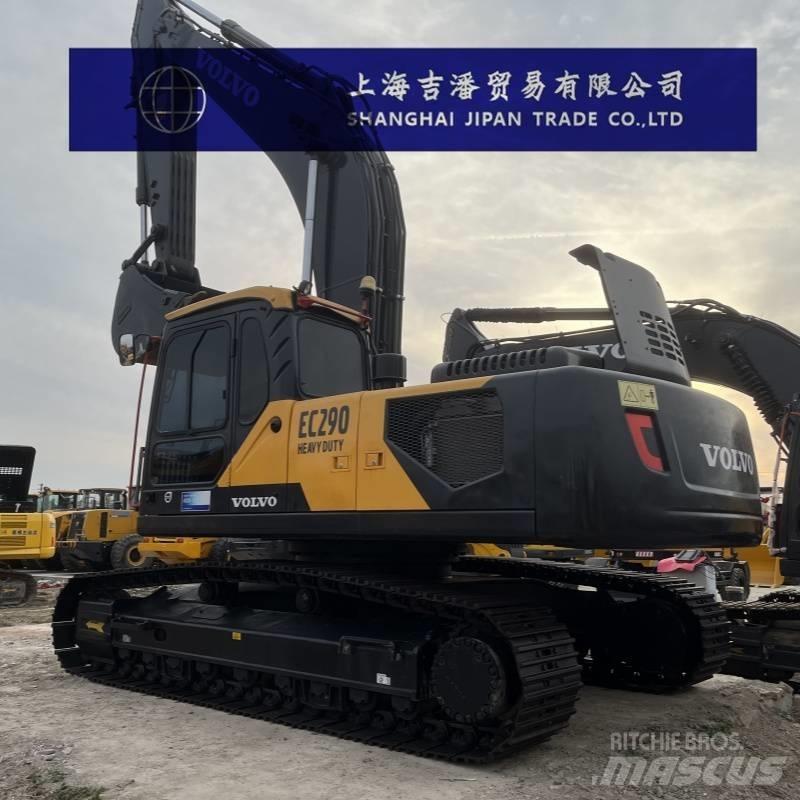

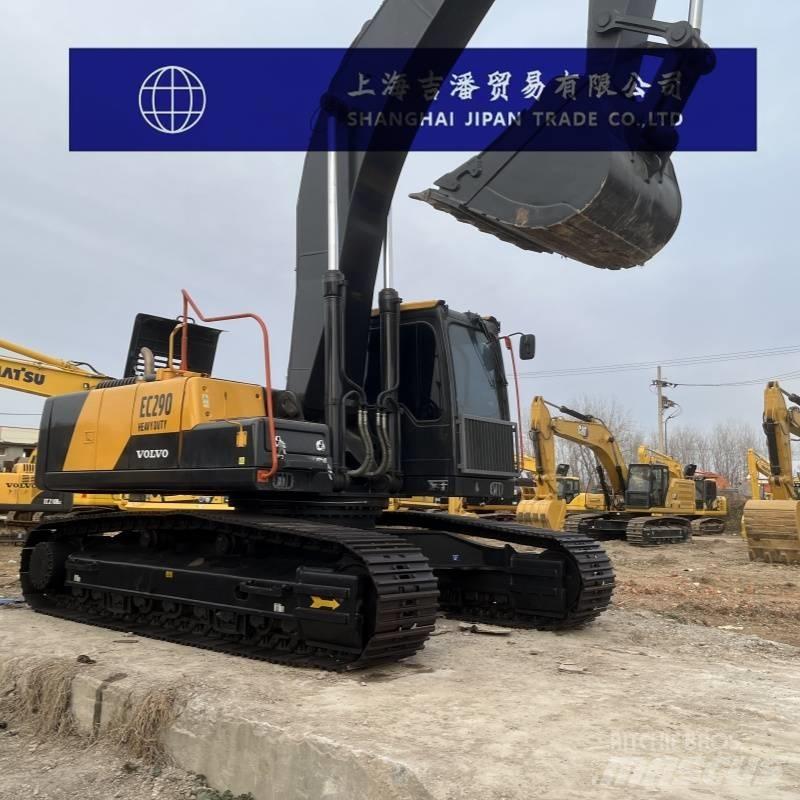

Volvo EC 290 Crawler excavators
Volvo EC 290 Crawler excavators
Volvo EC 290 Crawler excavators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
Crawler excavators
Brand / model
Volvo EC 290
Manufacture date (yr)
2024
Hours Used
600 h
Country
China
General grade
1
2
3
4
5
Mascus ID
FA74CAD5

PRICE

Select currency

ITEM DETAILS

Internal stock no.
1
Power type
Diesel
Manufacturing / Serial number
1
Amount of previous owners
1
Latest Date of Inspection
2025-04-17
Undercarriage condition
Good Condition
Engine
Original
Gross Weight
29,900 kg
Power Output
153 kW (208 hp)
Engine manufacturer
Original
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
1.30 m3
Track width
700 mm
Output of the auxiliary hydraulics
250 l/min
Top speed
5.20 km/h
Transport dimensions (LxWxH)
10400 x 3190 x 3290 mm
Original colour
Original
Dipper / stick length
3,050 mm
Condition info/guarantee
1 Year
Production country
South Korea
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Air conditioning
Additional hydraulics
Skeleton bucket
Battery disconnector
Show more
Additional Info
沃尔沃EC290挖掘机参数配置 规格 整机工作重量(kg)28500-29900 铲斗容量(m³)1.3 动臂长度(mm)6200（重型臂） 斗杆长度(mm)3050 原产地韩国/中国上海 吨位(吨)29 厂商合资/进口 动力传统动力 铲斗反铲 厂商合资/进口 动力传统动力 性能 回转速度(rpm)10.2 行走速度(km/h)3.3/5.2 爬坡能力(%)70%（35°） 接地比压(Kpa)54.1（配重5.4吨时） 铲斗挖掘力(kN)181.4（标准模式）/198.4（加力模式） 斗杆挖掘力(kN)127.6（标准模式）/139.5（加力模式） 最大牵引力(kN)230.5 动力系统 发动机型号沃尔沃 VOLVO D7D 额定功率(kw/rpm)153/1900 排量(L)7.1 气缸数(个)6 缸径×行程(mm)108×130 冷却方式水冷 工作形式涡轮增压；电控直喷；增压空气冷却器 液压系统 主泵类型变量轴向柱塞泵×2+齿轮泵 主泵最大流量(l/min)250×2+19 行走液压马达型式变量轴向柱塞马达×2 回转液压马达型式轴向柱塞液压马达（带机械制动） 工作液压油路(Mpa)31.4/34.3 行走液压回路(Mpa)34.3 回转液压回路(Mpa )26.5 控制液压回路(Mpa )3.9 动臂油缸-个数×缸径×行程(mm)2-140×1480 斗杆油缸-个数×缸径×行程(mm)1-150×1745 铲斗油缸-个数×缸径×行程(mm)1-140×1140 油类容量 燃油箱(L)470 液压油箱(L)195 液压系统(L)400 发动机油更换量(L)32 冷却液(L )44 主体尺寸 运输总长度(mm)10400 运输总宽度(mm)3190 运输总高度(mm)3290（大臂总高度） 驾驶室全高(mm)3030 配重离地间隙(mm)1145 履带接地长度(mm)4015 履带总长度(mm)4870 履带板宽度(mm)三齿600/700/800/900；两齿700 履带总宽度(mm)3190 履带轨距(mm)2590 最小离地间隙(mm )480 前段工作装置最小回转半径(mm)4180 后端回转半径(mm )3050 作业范围 最大挖掘半Show more

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
