CAT 303 CR

Price excl. GST

Images14

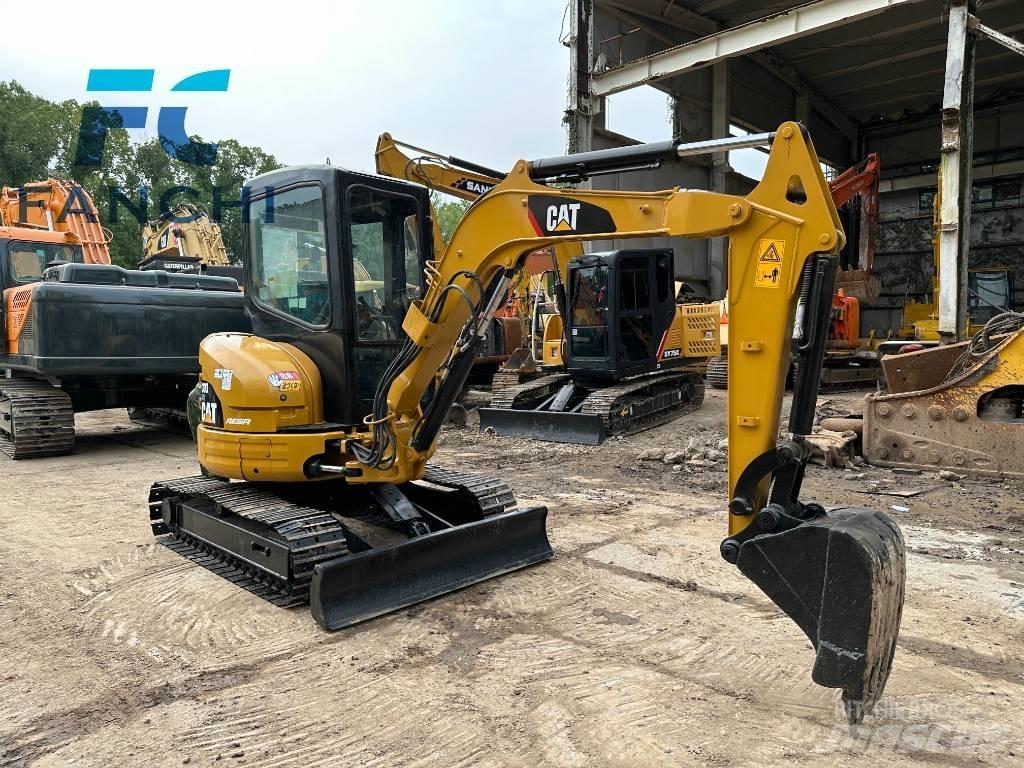

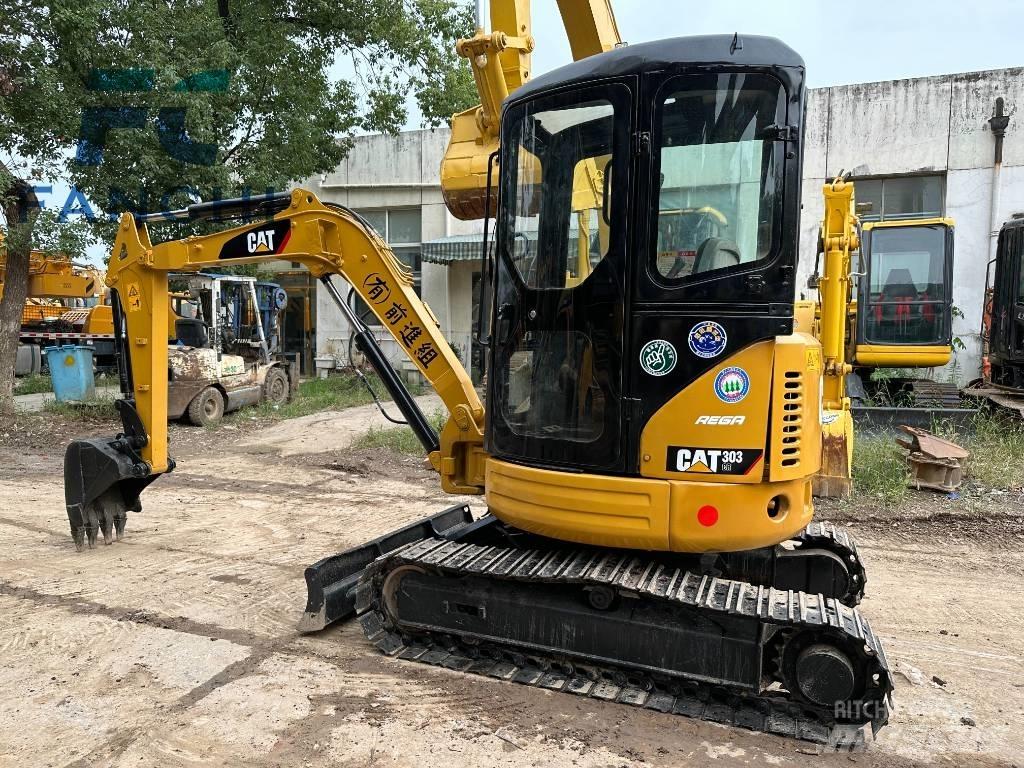

CAT 303 CR Mini excavators < 7t (Mini diggers)
CAT 303 CR Mini excavators < 7t (Mini diggers)
CAT 303 CR Mini excavators < 7t (Mini diggers)
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
Mini excavators < 7t (Mini diggers)
Brand / model
CAT 303 CR
Manufacture date (yr)
2023
Hours Used
400 h
Condition
Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
A2D0DB59

PRICE

Select currency

ITEM DETAILS

Power type
Diesel
Amount of previous owners
1
Undercarriage condition
good
Gross Weight
3,548 kg
Output of the auxiliary hydraulics
66 l/min
Emission level
Stage V / Tier IV final
Track width
300 mm
Bucket capacity
0.12 m3
Transport dimensions (LxWxH)
473017802.5 m
Original colour
YELLOW
Engine

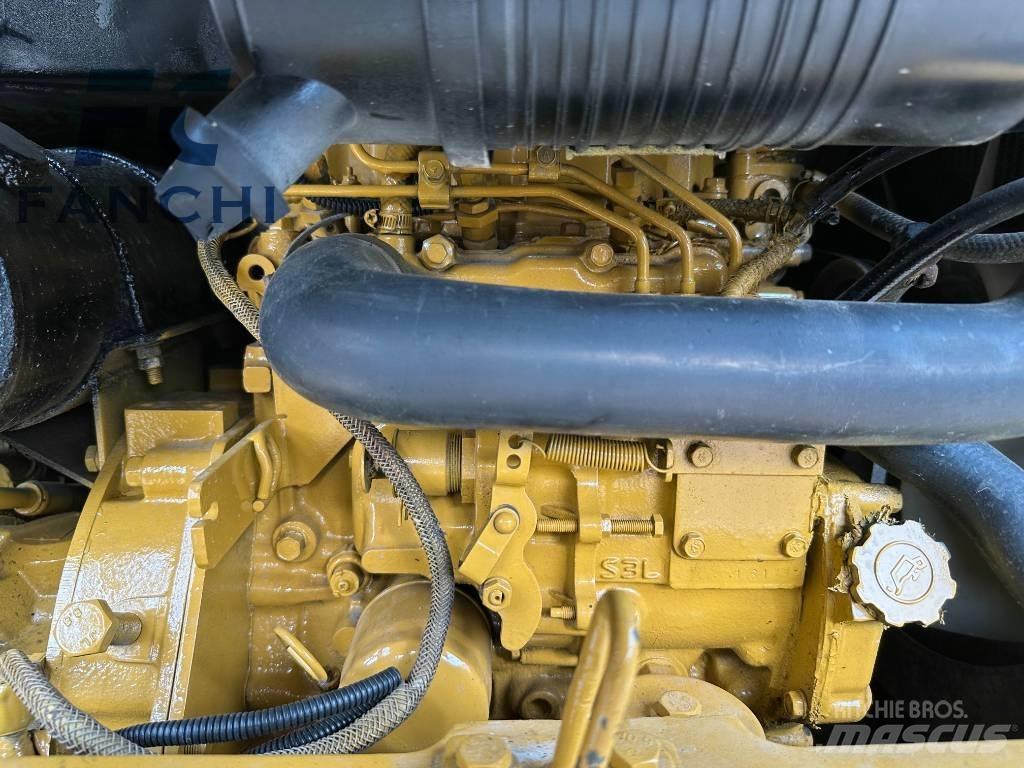

Cat C1.8
Power Output
23.6 kW (32.1 hp)
Engine manufacturer
japan
Tyre brand
original
Condition info/guarantee
good
Production country
Japan
Delivery terms
FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Attachments
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessories
Manual / mechanic quick coupler
Hammer/shear hydr. circuit
Air conditioning
Diesel heater
Show more
Additional Info
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Show more
