CAT CAT305.5E2

Price excl. GST

Images10

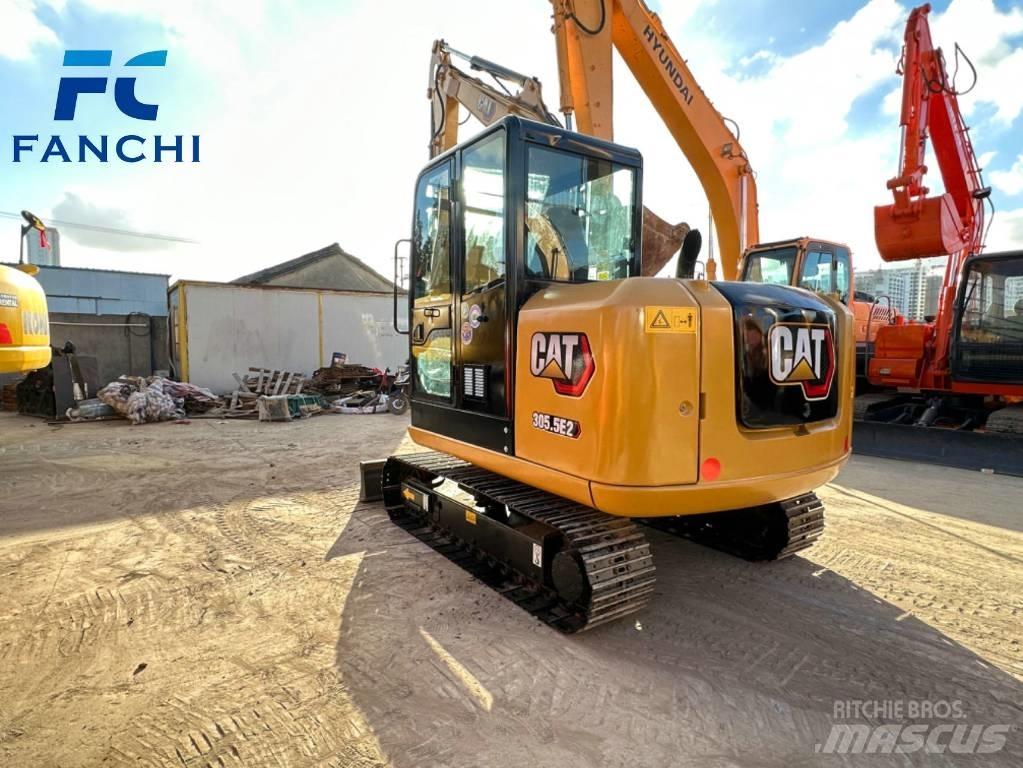

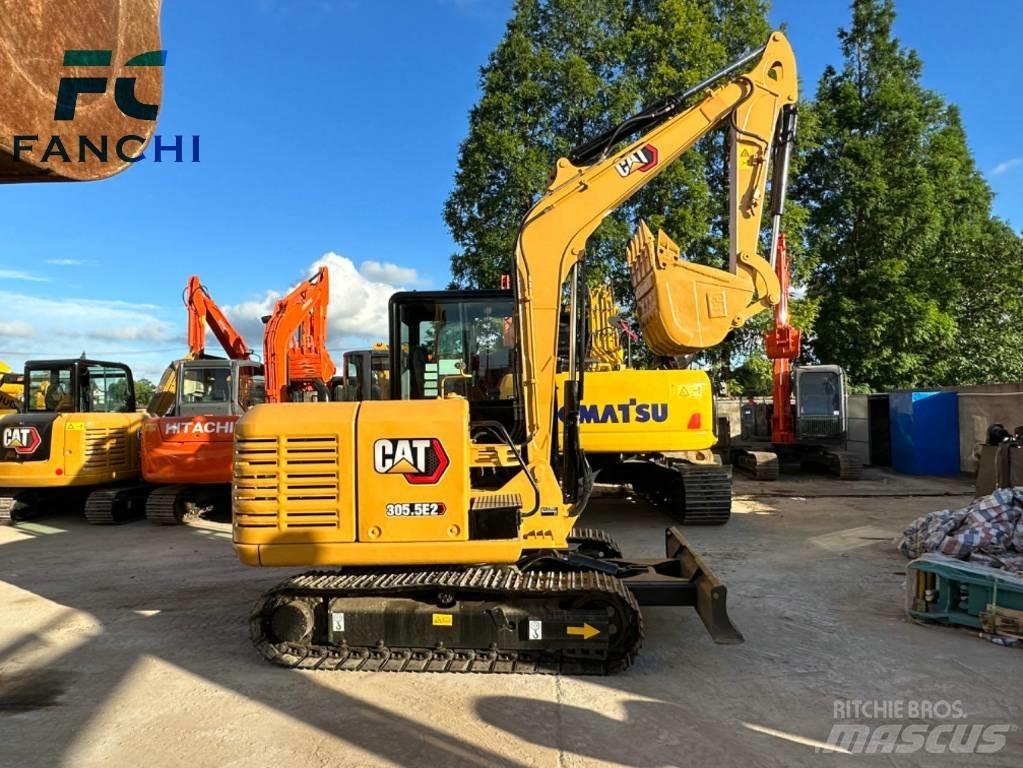

CAT CAT305.5E2 Mini excavators < 7t (Mini diggers)
CAT CAT305.5E2 Mini excavators < 7t (Mini diggers)
CAT CAT305.5E2 Mini excavators < 7t (Mini diggers)
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
Mini excavators < 7t (Mini diggers)
Brand / model
CAT CAT305.5E2
Manufacture date (yr)
2024
Hours Used
450 h
Condition
Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
77BC2619

PRICE

Select currency

ITEM DETAILS

Power type
Diesel
Full log books
Yes
Amount of previous owners
1

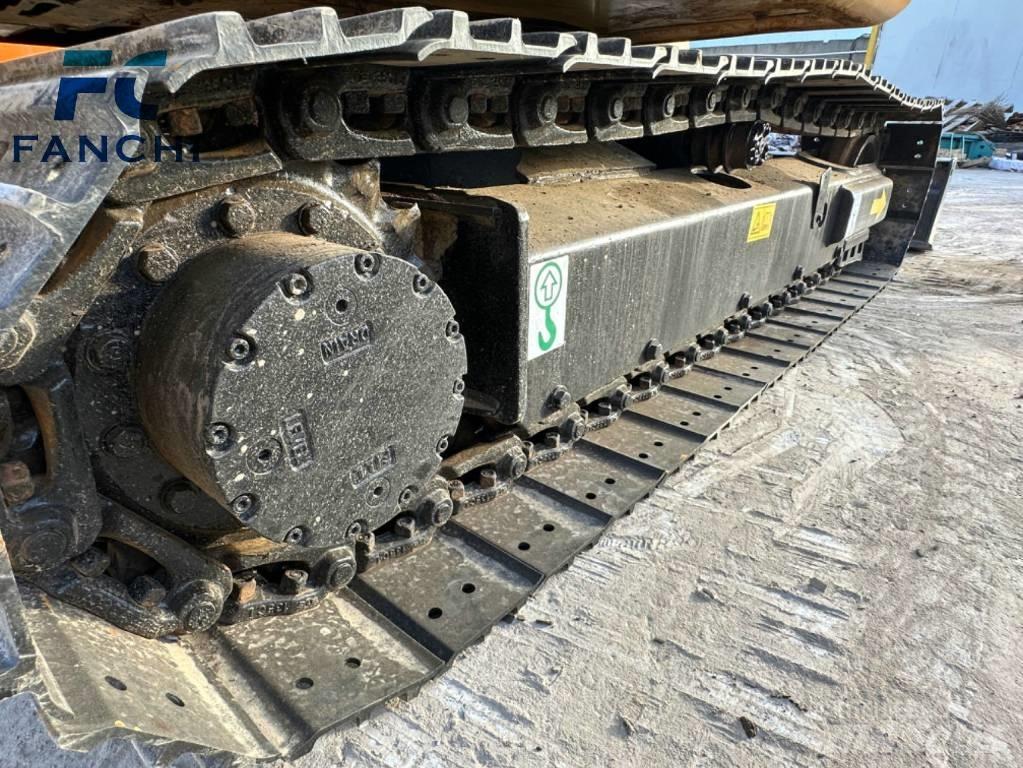

Undercarriage condition
good
Gross Weight
5,500 kg
Emission level
Stage V / Tier V
Track width
400 mm
Bucket capacity
0.22 m3
Transport dimensions (LxWxH)
576519502.54 m
Original colour
YELLOW
Dipper / stick length
960 mm
Engine
Cat C2.4 DI
Power Output
34.1 kW (46.4 hp)
Engine manufacturer
JAPAN
Condition info/guarantee
good
Production country
Japan
Delivery terms
FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Attachments
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessories
Twig wire box
Air conditioning
Additional hydraulics
Ad blue
Show more
Additional Info
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Show more

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
