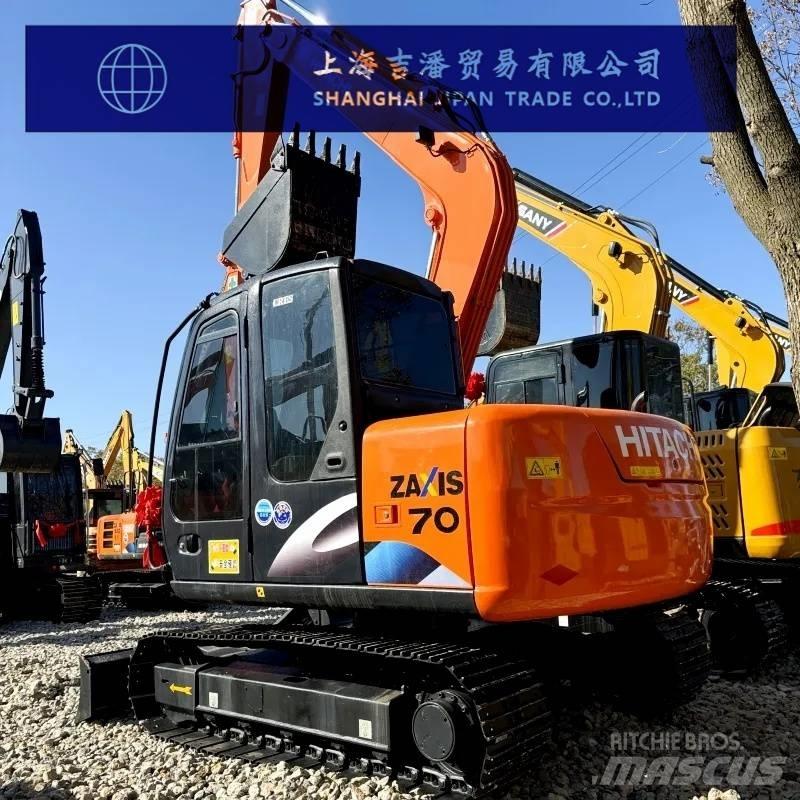

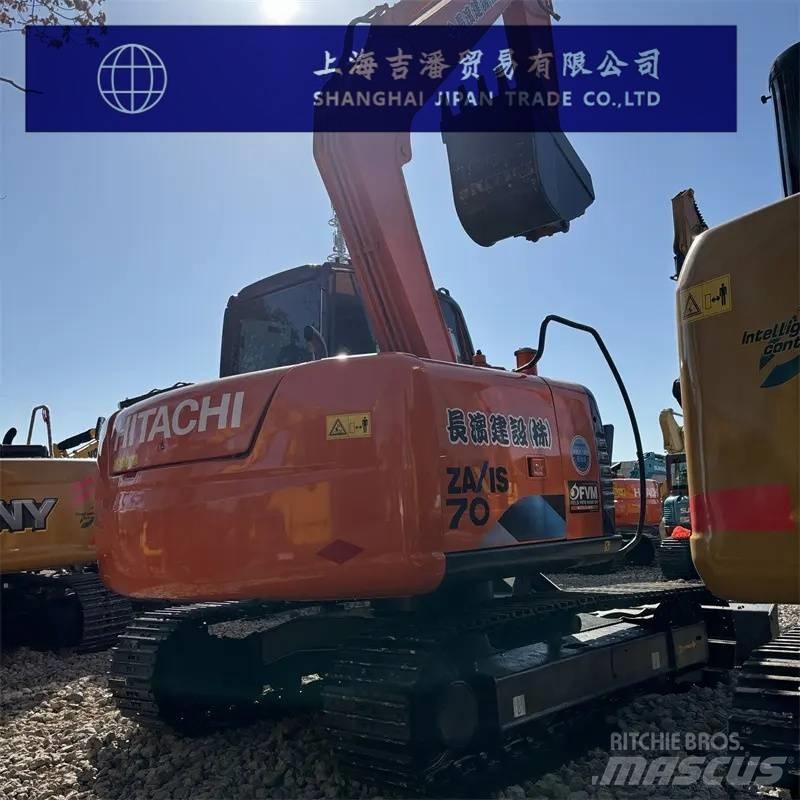

Hitachi ZX 70

Price excl. GST

Compnay LOGO
Images6
Hitachi ZX 70 Mini excavators < 7t (Mini diggers)
Hitachi ZX 70 Mini excavators < 7t (Mini diggers)
Hitachi ZX 70 Mini excavators < 7t (Mini diggers)
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product Group
Mini excavators < 7t (Mini diggers)
Brand / model
Hitachi ZX 70
Manufacture date (yr)
2022
Hours Used
1,896 h
Country
China
General grade
1
2
3
4
5
Mascus ID
F71BF09E

PRICE

Select currency

ITEM DETAILS

Power type
Diesel
Latest Date of Inspection
2025-04-28
Amount of previous owners
1

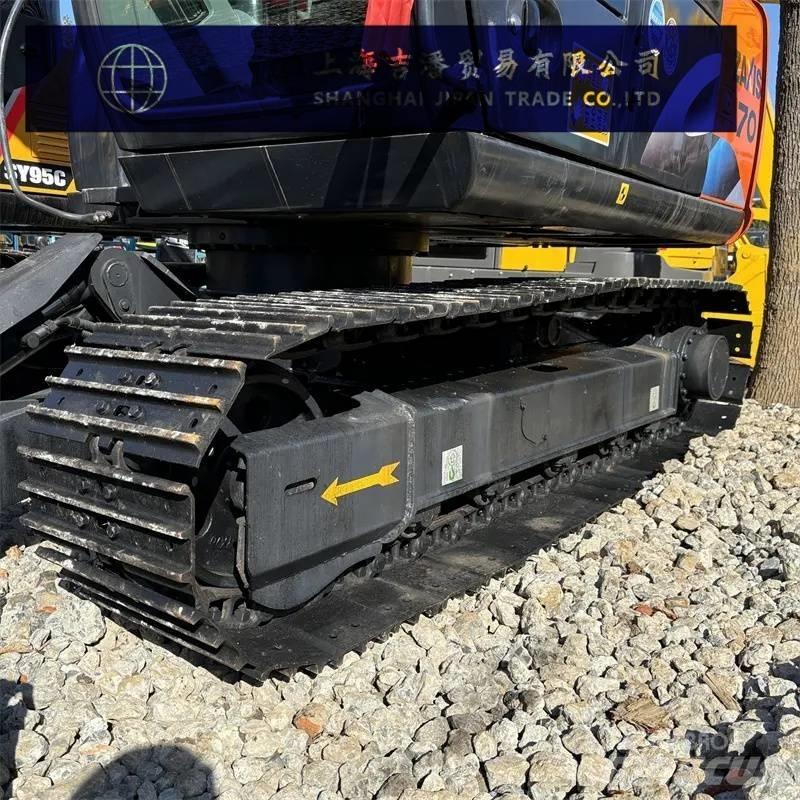

Undercarriage condition
98%
Gross Weight
6,700 kg
Emission level
Stage V / Tier V
Track width
450 mm
Bucket capacity
0.33 m3
Transport dimensions (LxWxH)
608022602.6 m
Original colour
original
Engine
original
Power Output
42.4 kW (57.7 hp)
Engine manufacturer
original
Condition info/guarantee
1 year
Production country
Japan
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Air conditioning
Skeleton bucket
Joystick control
Standard digging bucket
Show more
Additional Info
规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)7 整机工作重量(kg)6700 铲斗容量(m³)0.33-0.38 动臂长度(mm)3720 斗杆长度(mm)1620 性能 回转速度(rpm)10.7 回转扭矩(Nm)12.9 行走速度(km/h)3.4-5.0 爬坡能力(%)70 接地比压(Kpa)31 铲斗挖掘力(kN)55 斗杆挖掘力(kN)38 最大牵引力(kN)47.8 动力系统 发动机型号4TNV98 额定功率(kw/rpm)42.4/2100 最大扭矩(N.m)236/1350 排量(L)3.318 气缸数(个)4 缸径×行程(mm)98×110 冷却方式水冷 工作形式4冲程-水冷-直喷式 液压系统 主泵类型3个变量轴向柱塞泵 行走液压马达型式2个变量轴向柱塞马达 先导泵类型( )1个齿轮泵 回转液压马达型式1个轴向柱塞马达 主泵最大流量(l/min)2×63 / 1×52.5 先导泵流量(L/min)21 先导油路(MPa)3.9 工作液压油路(Mpa)26 行走液压回路(Mpa)31.4 回转液压回路(Mpa )22.6 动臂油缸-个数×缸径×行程(mm)1*115*65 斗杆油缸-个数×缸径×行程(mm)1*95*60 铲斗油缸-个数×缸径×行程(mm)1*85*55 油类容量 燃油箱(L)135 液压油箱(L)60 液压系统(L)100 发动机油更换量(L)12.3 冷却液(L )8 主体尺寸 运输总长度(mm)6080 运输总宽度(mm)2260 运输总高度(mm)2600 驾驶室全高(mm)2600 上车宽度(mm)2260 履带接地长度(mm)2140 履带板宽度(mm)450 履带总宽度(mm)2200 履带轨距(mm)1750 最小离地间隙(mm )360 配重离地间隙(mm)760 前段工作装置最小回转半径(mm)1720 后端回转半径(mm )1750 托链轮数（单侧）(个)1 履带板数量（单侧）(个)38 支重轮数（单侧）(个)5 作业范围 最大挖掘半径(mm)6320 停机面最大挖掘半径(mm)6170 最大挖掘深度(mm)4170 最大挖掘高度(mm)7150 最大卸载高度(mmShow more

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
