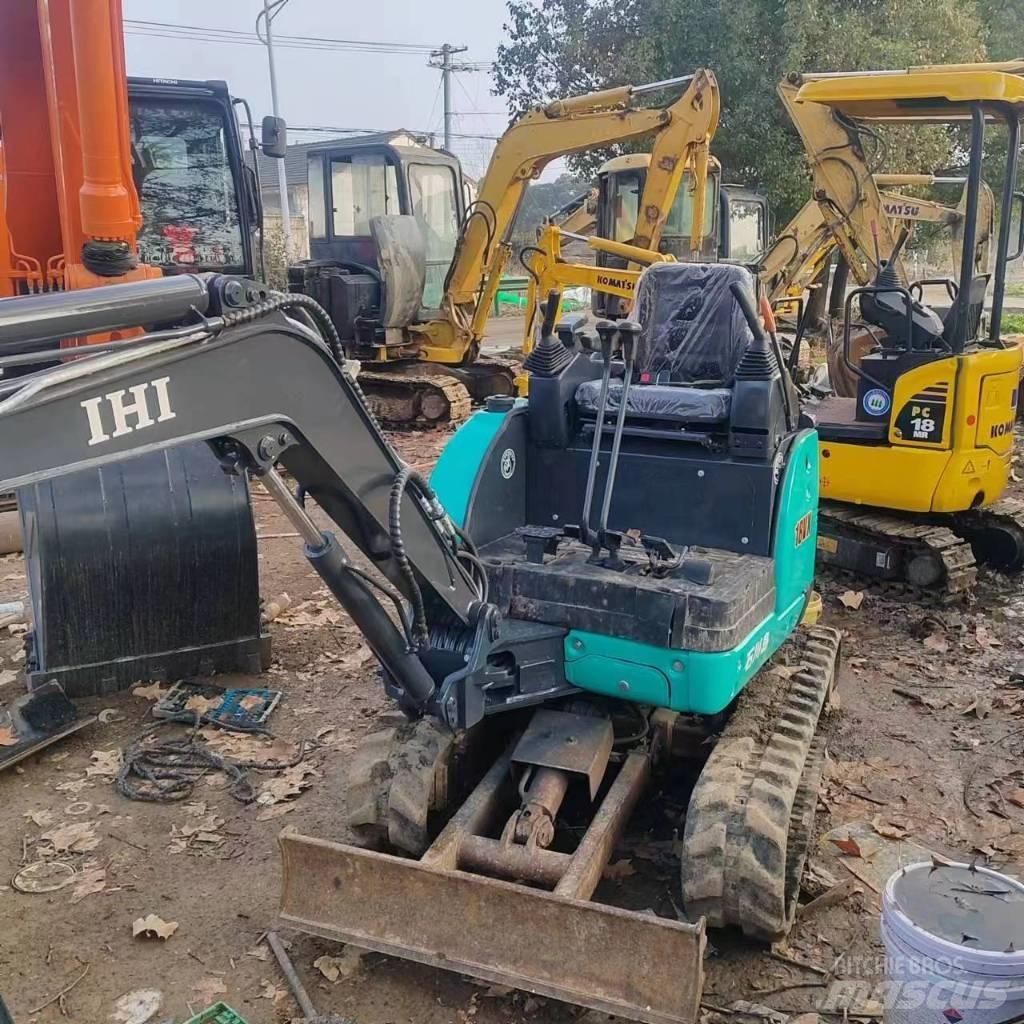

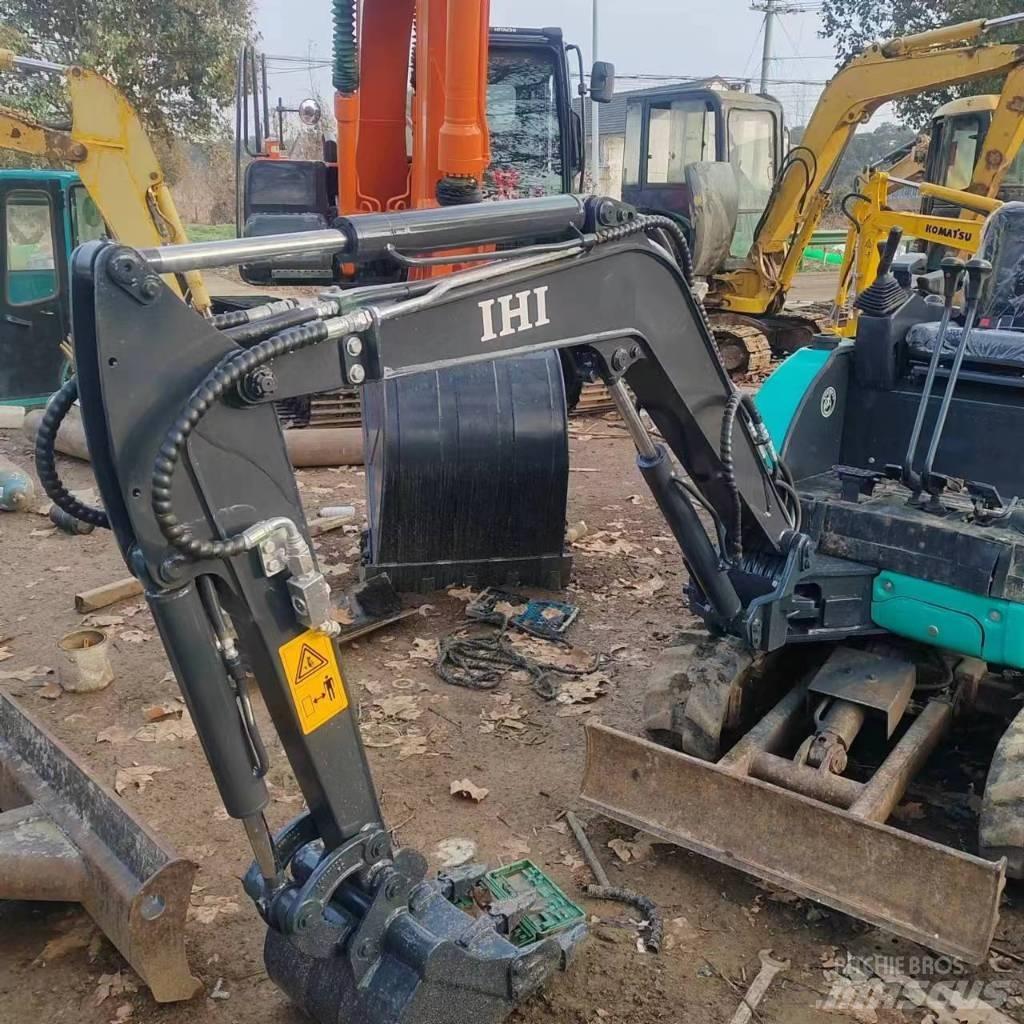

IHI 18VX
9
Favorite
Share
Save searchPrint
INFO
Product Group
Mini excavators < 7t (Mini diggers)
Brand / model
IHI 18VX
Condition
Reconditioned
Country
China
General grade
Mascus ID
6A639EF8
PRICE
Select currency
Price
Does not include reclaimable VAT
ITEM DETAILS
Power type
Diesel
Latest Date of Inspection
2025-02-07
Amount of previous owners
1
Undercarriage condition
good condition
Gross Weight
2,000 kg
Track width
1,300 mm
Bucket capacity
0.06 m3
Transport dimensions (LxWxH)
3.38/0.98/2.33 m
Original colour
green
Engine
Yanmar 3TNV70
Power Output
10.5 kW (14.3 hp)
Engine manufacturer
yanmar
Condition info/guarantee
good condition
Production country
Japan
Delivery terms
FCA, FAS, FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS
Additional Info
Main Performances:
·Rotation speed(rpm):9.5
·Rotating torque(N.m):4.0/2.1(high/low)
·Gradeability(%):58
·Grounding specific pressure(kPa):28.5
·Digging force of bucket(kN):16
Hydraulic System:
·Maximum flow rate of main pump(L/min):17.2×2+12
·Main overflow set pressure(MPa):20.6
Working Range:
·The maximum excavating radius(mm):3760
·The maximum excavating depth(mm):2100
·The maximum excavating height(mm):3610
·The maximum unloading height(mm):2560
·The maximum vertical excavating depth(mm):1770
Oil Capacity:
·Fuel tank volume(L):20
HEFEI XIANMING CONSTRUCTION MACHINERY CO.,LTD.
中国安徽省合肥市包河区滨湖区中山路1522号佳源都市小区美泉宫26幢及配套商业2幢702室 230041 合肥市 安徽 China
