INFO

Product Group
Rough terrain cranes
Brand / model
Grove RT9130E-2
Manufacture date (yr)
2012
Location
The Bahamas
Country
United States
General grade
1
2
3
4
5
Mascus ID
54715182

PRICE

Select currency

ITEM DETAILS

Internal stock no.
915
Maximum lift capacity
130,000 kg
Maximum lift height
4,877 cm
Attachments
https://freecranespecs.com/Grove/RT9130E-2
Additional Info

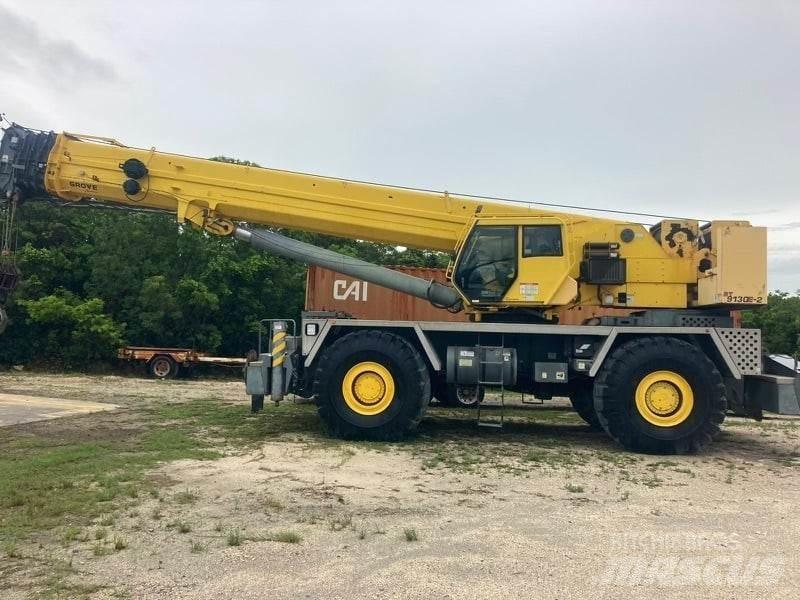

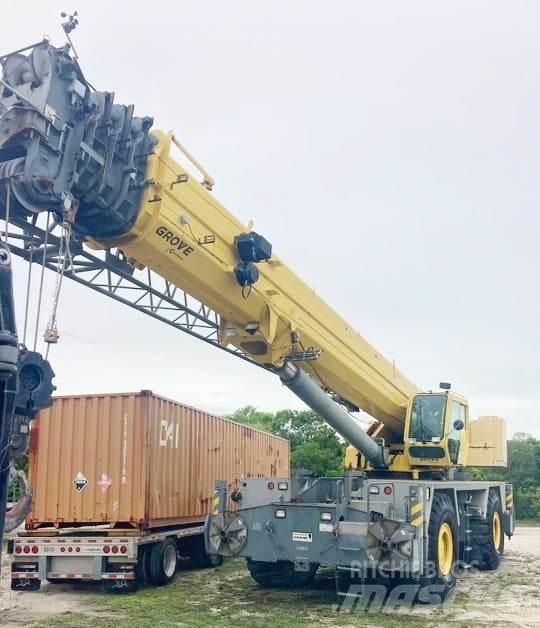

2012 Grove RT9130E-2, 130 Ton. Rough Terrain Crane; CranesList ID: 915, 42' - 160' Five Section sequenced synchronized full power boom, 36' Swing Away extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section, Main and Auxiliary winches with 3/4” wire rope,  Drum Rotation Indicator, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout, Hook Block, Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab, Grove 4 x 4 drive Carrier, Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine, Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel., Front and Rear Tires: 33.25 x 29 - 38 bias ply, Air Conditioning, 40,000# counterweights. Hydraulically installed and removed, Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation, Outrigger Controls and crane level indicator located in cab, Fifth Front Outrigger, ... IN THE BAHAMAS! Show more

Craneslist

3350 E. 7th ST #512 90804 Long Beach California United States
