Place Machine/Truck

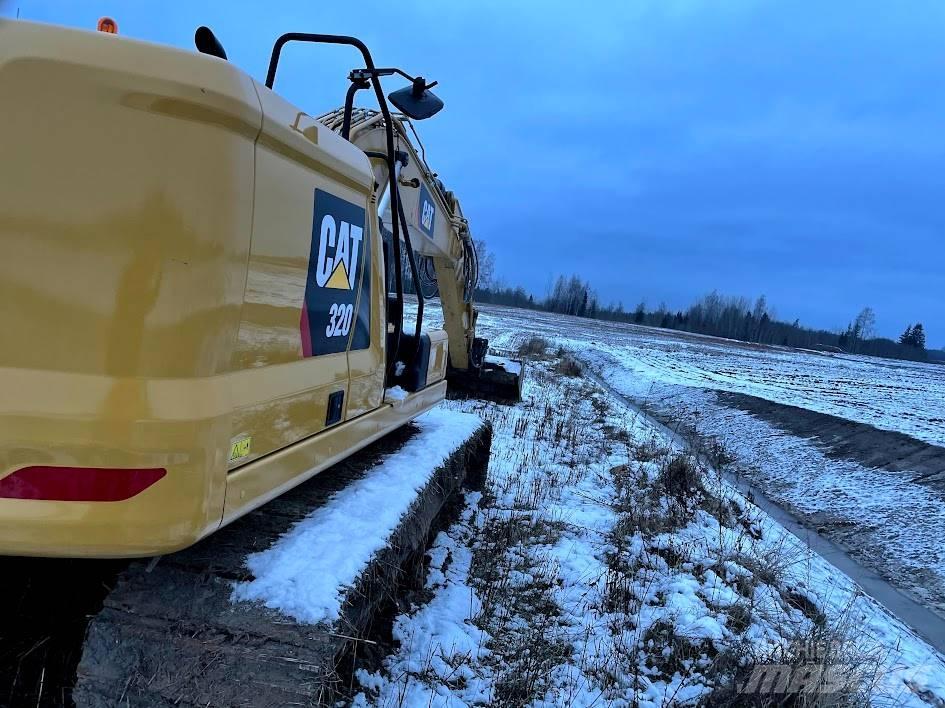

CAT 320

Name: CAT 320
Brand: CAT
SKU: F5FF8A17
Price: 145000 EUR
Availability: InStock

Price excl. GST

Favorite

Save search

INFO

Product Group

Crawler excavators

Brand / model

CAT 320

Manufacture date (yr)

2018

Hours Used

2,250 h

Location

Saldus, Saldus novads

Country

Latvia

General grade

Mascus ID

F5FF8A17

PRICE

Select currency

ITEM DETAILS

Power type

Diesel

Manufacturing / Serial number

CAT00320EHEX02486

Amount of previous owners

Full log books

Yes

Undercarriage condition

Excellent Condition

Engine

CAT 4-cilindru C4.4 ACERT

Gross Weight

22,100 kg

Power Output

122 kW (166 hp)

Emission level

Stage IV / Tier IV final

Bucket capacity

1.30 m³

Track width

790 mm

Output of the auxiliary hydraulics

429 l/min

Transport dimensions (LxWxH)

4460 x 3170 x 3160 mm

Original colour

Dzeltena

Condition info/guarantee

Lightly Used CAT 320 in Excellent Condition

Production country

Latvia

Delivery terms

FCA

Attachments

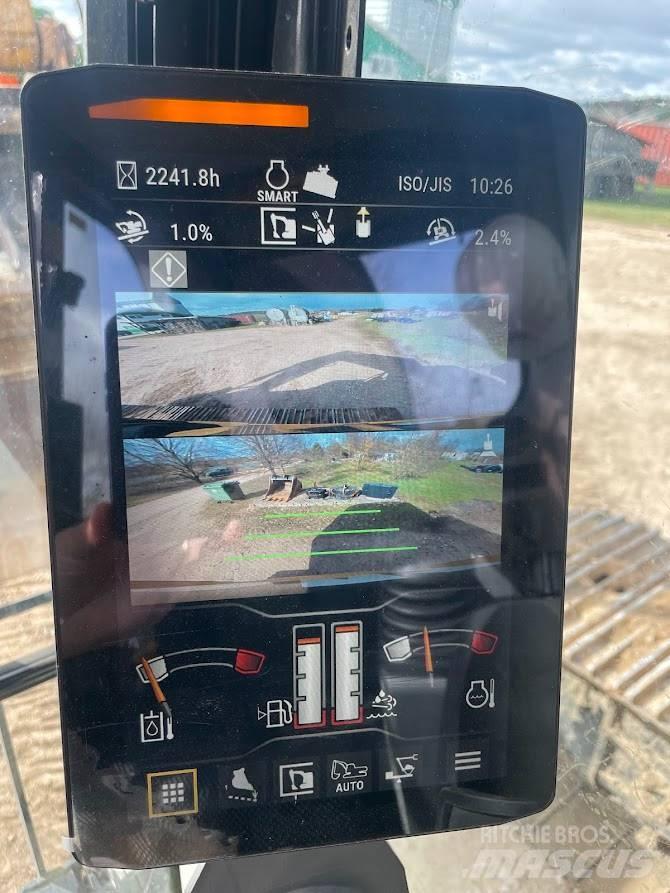

Hidrauliski sagāžams planēšanas kauss (platums 2000 mm, tilpums 1.23 m³) ar taisno nazi Hidrauliskā ātrā sakabe CAT CW40H CW-40-H.4.N ātrā sakabe ar pacelšanas āķi (ofseta), komplektācijā hidrolīnijas 2D Basic sistēma (FRU - Laser Catcher, Kit laser Catcher) SKF/BEKA/GRACO centrālā eļļošanas sistēma Visu tehnikas smērpunktu automātiska eļļošana Kabīnes priekšējā vējstikla aizsargs, FOGS Atverams vējstikla tīrīšanai Kabīnes LED gaismas (850 lm).Augstas izšķirtspējas 8 collu LCD skārienjutīgs ekrāns.Snieguma izlice 5,7 m, kāts 2,9 m Hidrauliskās sistēmas augstspiediena, vidēja spiediena un ātrās sakabes ķēdes.SmartBoom™.Cat® Grade Control 2D - Slīpuma regulēšanas sistēma Cat® Production Measurement - Pārvietojamā materiāla svēršanas sistēma 2D E-žoga tehnoloģija, automātiskas kustību robežas: e-atvēziens, e-siena, ekabīne, e-griesti, e-grīda.Gaisa amortizēta luksusa sēdvieta ar galvas balstu un divpakāpju sēdvietas sildītāju, augstuma regulēšana ar pulti.Radio AM/FM/USB

Accessories

Auto / hydraulic quick coupler

Manual / mechanic quick coupler

Gooseneck boom

Hydraulic adjustable boom

Documents

CAT-320-apskats-latviski.pdf CAT-320-specifications-english.pdf

Additional Info

Tracked Excavator CAT 320 Technical Specifications: Operating weight: 21.9 – 23.5 t Engine: CAT 4-cylinder C4.4 ACERT (Stage IV) Power output: 122 kW / 164 HP (ISO 14396) Max digging depth: 6720 mm (with 2900 mm stick) Max reach at ground level: 9860 mm (with 2900 mm stick) Tail swing radius: 2830 mm Track length: 4460 mm Track width: 790 mm Transport width: 3170 mm Transport height: 3160 mm (with 2900 mm stick) Ground clearance: 470 mm Standard Equipment: Engine: Caterpillar C4.4 ACERT Twin Turbo diesel engine, Stage IV emission compliant, post-treatment system CEM (DOC+DPF+SCR), sealed dual air filter with pre-cleaner, automatic engine speed control, programmable idle shutdown. Hydraulic system: Electronic main control valve and tandem electronic main pump, automatic warm-up, two-speed automatic control, boom and stick regeneration circuits, three selectable power modes (Eco, Smart, Performance). Undercarriage: Grease-lubricated track chain, underguard, swing guard. Cab: ROPS-certified, high-pressure cabin with reinforced upper windshield and removable lower window, dual 12V outlets, USB port, dome and low LED lights, automatic bi-level climate control, air-suspended premium seat with headrest, seat heater, height adjustment with remote, armrest adjustment, steel hatch. Electrical system: Maintenance-free battery, central electrical disconnect switch, LED work lights with delay timer. Safety: Rear and right-side cameras, handrails, anti-slip maintenance platform, neutral lever for all controls, ground-level secondary engine shutdown switch, audible alert system. Other: Electrically controlled fan blades, grouped service points for oil and fuel filters, second oil dipstick at ground level, Cat Product Link system with VisionLink™ web monitoring interface. Machine Configuration: Boom: 5.7 m Stick: 2.9 m Combined circuit hydraulics SmartBoom™ Cat® Grade Control 2D (slope guidance) Cat® Production Measurement (on-board weighing) 2D E-Fence technology (motion limits: e-ceiling, e-floor, e-wall, e-swing) 790 mm triple grouser track shoes with full-length track guard Radio AM/FM/USB Optional Equipment: LED cab lights (850 lm) 8" high-resolution LCD touchscreen display SKF/BEKA/GRACO automatic centralized lubrication system FOGS front windshield guard (openable for cleaning) CAT digging bucket (width: 1300 mm, volume: 1.3 m³) with “Penetration Plus” teeth (5) Hydraulic tilting grading bucket (width: 2000 mm, volume: 1.23 m³) with bolt-on straight edge CAT CW40H hydraulic quick coupler with lifting hook and hydraulic lines 2D Basic system (FRU - Laser Catcher, Kit Laser Catcher) Lightly Used CAT 320 Tracked Excavator in Excellent Condition Offered for sale is a lightly used CAT 320 tracked excavator in outstanding technical and visual condition. The machine has been used exclusively for excavation work, operated with care, and has logged just over 1000 actual working hours (digging). It is fully job-ready, requiring no additional investment. No oil leaks – hydraulics and engine are in perfect working order, regularly serviced by authorized dealer. Original factory paint – well preserved appearance with no rust or mechanical damage. Clean and comfortable cab – equipped with air conditioning, heater, luxury seat; all systems operate flawlessly. All systems function smoothly and precisely – including SmartBoom, Grade Control 2D, Production Measurement and more. Maintenance has been performed using only original parts and lubricants – service documentation available upon request. The machine has operated in a single location – no transport wear from frequent relocations between job sites. Buyer’s benefit: No repairs or investment needed – ready to work immediately Reliable model with proven efficiency and powerShow more
